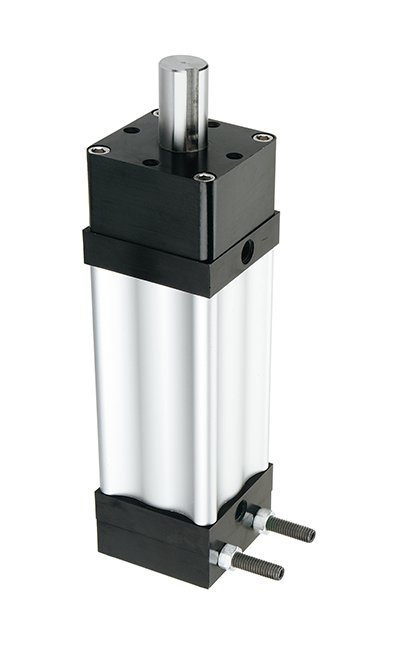

Compact Automation 90 Degree Rotation Rotary Vane Actuator
Compact Automation 90 Degree Rotation Rotary Vane Actuator
SKU:ROT-0e36c9
Compact Automation 90º Rotation Rotary Vane Actuator with 60 in·lb torque for precise industrial applications.
Regular price
$279.99
Regular price
Sale price
$279.99
Unit price
per
Initiate Order
Compact Automation 90 Degree Rotation Rotary Vane Actuator
$279.99
Quantity: 1
Claim Your Seller Account
Compact Automation 90 Degree Rotation Rotary Vane Actuator
$279.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Compact Automation Turn-Dex Rotary Vane Actuator features a 90º rotation angle, delivering precise and reliable performance for industrial applications. With a maximum torque of 60 in·lb, this pneumatic actuator ensures accurate and repeatable positioning. Ideal for turntable workstations, conveyor systems, and product mixing, it offers optional position feedback for enhanced control. Customizable to meet specific needs, the Compact Automation Turn-Dex Actuator is engineered for durability and efficiency.
Product Specifications
Applications Include Applications Include
Turntable Work StationsDrive Conveyor Rollers or BeltsDrive Material Feed RollersRatchet Type DriveSheet Feed Material From a StackPeristalsis Pump DriveLow Speed High Torque MotorProduct Mixing
Application Considerations Application Considerations
Overrun: The output shaft can be manually rotated only in its drive direction. Large loads may coast after the actuator has stopped. The output shaft cannot be reverse rotated- Forcing it backwards could damage the Turn-DeAccurate & Repeatable Positioning: Due to the overrun nature of the clutch eSpecial Options: Turn-Act will provide customized units to fit your specific application needs. Modifications include special shafting, special mounts, dutch housings with shot-pin cylinders, disc brakes and thrust protection. Consult your Compact distributor for additional information.
Features Features
Position Feedback (Optional)
Specifications Actuator Style
Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Length
4.84 in
Specifications Maximum Torque
60 in·lb
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
35 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Physical Dimensions
1.62 in²
Specifications Rotational Output
Shaft
Specifications Rotation Angle
90 º
Specifications Shaft Length Or Table Height
1 in
Specifications Shaft Or Table Diameter
0.625 in
Specifications Standard
english_1_1_4
Specifications Technology Type
Pneumatic
