Compact Automation Air Springs
Compact Automation Air Springs
SKU:AIR-a26398
Durable air springs for precise actuation and vibration isolation in various applications. Versatile and cost-effective solution with superior performance.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Compact Automation Air Springs
$89.99
Quantity: 1
Claim Your Seller Account
Compact Automation Air Springs
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

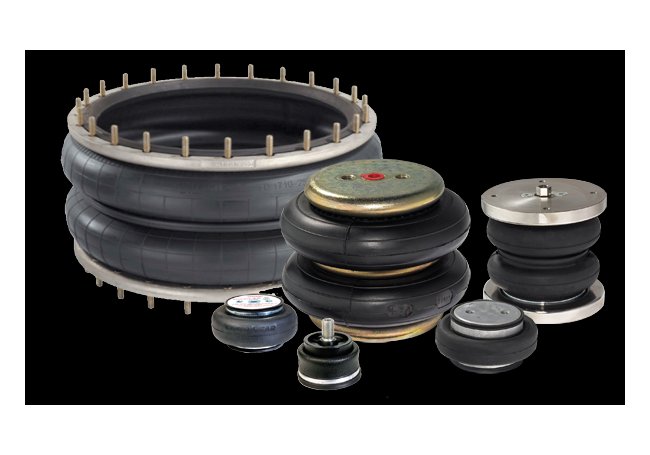

Ideal for a wide range of actuation and vibration isolation applications, these Compact Automation Air Springs offer superior durability through natural rubber flex-member construction. With a stroke-to-compressed-height ratio surpassing standard air cylinders, they ensure excellent performance under varying loads while effectively reducing harmful vibration effects. Available in multiple bellows configurations, these air springs can operate with different actuation media, making them versatile and cost-effective solutions for both linear and angular motion needs.
Product Specifications
Additional Information Additional Information
Compact Automation offers a variety of air spring types to meet your actuation or isolation needs. The Single, Double and Triple Convolute Bellows, Rolling Lobe and Sleeve Types are available in a wide range of sizes, with the end retainer style required to suit your specific installation.
Dimensions Maximum Diameter High
37.4 in
Dimensions Maximum Diameter Low
2.4 in
Dimensions Maximum Height High
31.5 in
Dimensions Maximum Height Low
4.4 in
Dimensions Minimum Height High
1.2 in
Dimensions Minimum Height Low
1.2 in
Specifications Load Capacity High
100710 lb
Specifications Load Capacity Low
179 lb
Specifications Maximum Pressure
120 psi
Specifications Spring Construction
Double Bellows (Optional) | Single Bellows (Optional) | Sleeve/Lobe (Optional) | Triple Bellows (Optional)
Specifications Stroke Size High
26.8 in
Specifications Stroke Size Low
1.3 in
