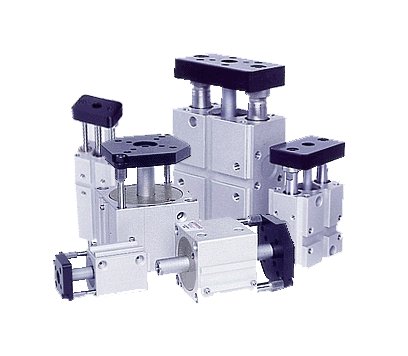

Compact Automation GC 2000 Guided Cylinders
Compact Automation GC 2000 Guided Cylinders
SKU:SLI-7af91a
Compact Automation GC 2000 Guided Cylinders offer precise linear motion control with adjustable stroke and durable aluminum construction.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Compact Automation GC 2000 Guided Cylinders
$299.99
Quantity: 1
Claim Your Seller Account
Compact Automation GC 2000 Guided Cylinders
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Compact Automation GC 2000 Series Guided Cylinders feature adjustable stroke, optional bumpers/cushions, and a double end rod for versatile applications. With a compact envelope design and two external guide rods, these air cylinders offer precise linear motion control. Constructed with aluminum material and metal bushings, they ensure durability and smooth operation. Available with various bore sizes and stroke lengths, these cylinders are ideal for linear actuator, linear slide or stage, and pneumatic thrusting applications.
Product Specifications
Additional Information Additional Information
Oil impregnated guide bushingsTwo mounting surfaces and a large tooling plate
Specifications Actuation Type
Pneumatic
Specifications Axis Configuration
X Axis Only
Specifications Bore Size High
3 in
Specifications Bore Size Low
0.5 in
Specifications Cylinder Action
Single
Specifications Cylinder Configuration
Guided | Simple
Specifications Cylinder Style
Rectangular
Specifications Cylinder Type
Air Cylinder
Specifications Device Type
Linear Actuator | Linear Slide or Stage | Linear Thruster | Pneumatic Thruster | Rod Type
Specifications Material
Aluminum
Specifications Metal Bushing
Yes
Specifications Mounting Type
Flange (Optional) | Multi-Mount Bracket | Other (Optional) | Threaded
Specifications Number Of Shafts
One
Specifications Operating Pressure High
250 psi
Specifications Operating Pressure Low
250 psi
Specifications Orientation
Horizontal
Specifications Stroke Or X Axis Travel High
3 in
Specifications Stroke Or X Axis Travel Low
0.125 in
