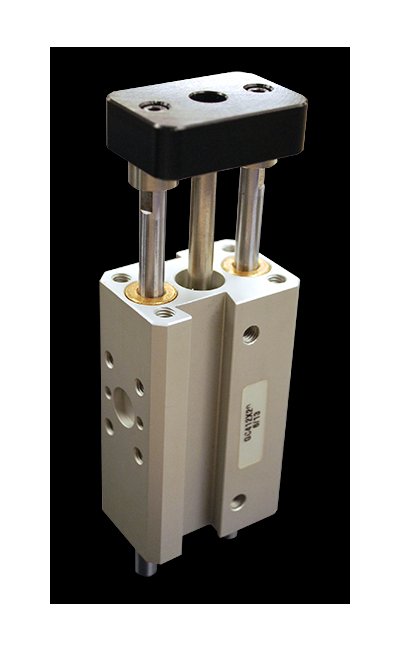

Compact Automation Products 12mm Guided Slide Cylinder
Compact Automation Products 12mm Guided Slide Cylinder
SKU:SLI-433a0c
Compact 12mm Guided Slide Cylinder with adjustable stroke, high load capacity, and long life. Ideal for institutional procurement.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Compact Automation Products 12mm Guided Slide Cylinder
$129.99
Quantity: 1
Claim Your Seller Account
Compact Automation Products 12mm Guided Slide Cylinder
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The 12mm Bore Size Guided Slide Cylinder by Compact Automation Products offers precise linear thrusting capabilities ideal for various applications. Features adjustable stroke options, slim compact design, high load capacity, and long life span. With stroke lengths up to 75mm and self-lubricating composite bearings, this cylinder ensures smooth operation and durability. Perfect for institutional and government procurement needs.
Product Specifications
Features Features
5 Bore sizesStroke lengths up to 75mm (3")Longer strokes available upon requestImperial and metric mounting stylesSelf-lubricating composite bearingsExternal urethane pads (retract stroke)Internal urethane cushions (extend stroke)Close fit dowel pin holes, standard on all holes.Accessories Include: adjustable stroke collars and pads sensor ready kits.
Specifications Actuation Type
Pneumatic
Specifications Bore Size
12 mm
Specifications Device Type
Linear Thruster | Pneumatic Thruster
Specifications Material
Aluminum
Specifications Mounting Type
Threaded
Specifications Number Of Shafts
Three
Specifications Operating Pressure Range High
150 psi
Specifications Operating Pressure Range Low
20 psi
Specifications Shaft Diameter
6 mm
Specifications Stroke Or X Axis Travel High
40 mm
Specifications Stroke Or X Axis Travel Low
12 mm
Specifications Thermoplasticcomposite Bushing
Yes
