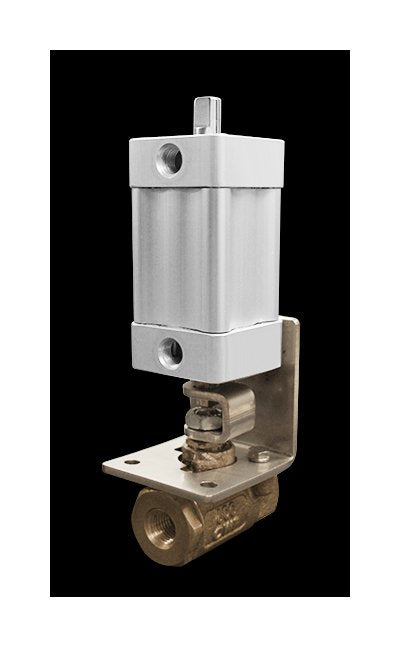

Compact Automation Products 265 in-lb Spring Return Ball Valve Actuator
Compact Automation Products 265 in-lb Spring Return Ball Valve Actuator
SKU:VAL-e96161
Experience precise and efficient valve actuation with the Compact Automation Products 265 in-lb Spring Return Ball Valve Actuator. Ideal for industrial applications.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Compact Automation Products 265 in-lb Spring Return Ball Valve Actuator
$499.99
Quantity: 1
Claim Your Seller Account
Compact Automation Products 265 in-lb Spring Return Ball Valve Actuator
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Compact Automation Products 265 in-lb Spring Return Ball Valve Actuator combines precision engineering with exceptional performance. This pneumatic vane actuator ensures reliable rotary motion valve operation for on/off isolating functions. With a torque range of 70 to 265 in-lb and a full quarter turn capability, this heavy-duty double-acting system features a worm drive adjustment for easy spring pretension customization. Optional limit switches and a remote position indicator enhance operational control, making it ideal for industrial applications requiring efficient and non-hazardous valve actuation.
Product Specifications
Features Features
Limit Switch / Remote Position Indicator (Optional)Manual Override of Power ActuatorNon-hazardousHeavy Duty Double Acting Ball Valve SystemsSpring Return Valve operatorsSingle acting with spring close or openValve Operator Systems
Specifications Acting Type
Double Acting (Air to Air)
Specifications Actuation Method
Pneumatic
Specifications Actuator Torque High
265 in·lb
Specifications Actuator Torque Low
70 in·lb
Specifications Actuator Type
Vane Actuator
Specifications Full Range Of Rotary Motion
Quarter Turn (90º)
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Operation
On/Off (Isolating)
Specifications Torque
140 to 800 in·lb
Specifications Valve Motion
Rotary Motion Valve
Specifications Valve Size
1/4 to 3 in
