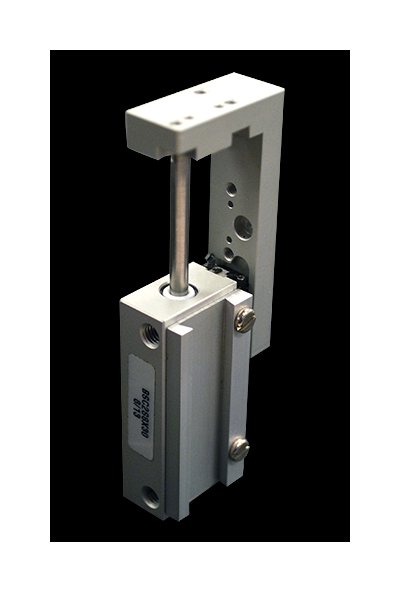

Compact Ball Slide Cylinder - 38mm Base Length

Name: Compact Ball Slide Cylinder - 38mm Base Length
Brand: Compact Automation Products
SKU: SLI-603827
Price: 129.99 USD
Availability: OutOfStock

SKU:SLI-603827

Experience precision automation with the Compact Ball Slide Cylinder - 38mm base length. Superior space efficiency and high load bearing capabilities for industrial applications.

$129.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Compact Ball Slide Cylinder with a 38mm base length offers exceptional space efficiency and precise industrial automation capabilities. Engineered with a high load bearing ball slide rail, this cylinder is designed for smooth and reliable linear motion. Featuring innovative patented designs like the snap-cap and stainless steel wire form end cap retainer, it ensures durability and performance. Ideal for X-axis applications, this cylinder provides stroke options of 2.5mm to 200mm, meeting the demands of precision industrial automation.

Product Specifications

Dimensions Base Height High

90.2 mm

Dimensions Base Height Low

33.4 mm

Dimensions Base Length High

241.13 mm

Dimensions Base Length Low

38 mm

Dimensions Carriage Length High

262 mm

Dimensions Carriage Length Low

49 mm

Dimensions Carriage Width High

48.6 mm

Dimensions Carriage Width Low

13 mm

Features Features

8mm and 12mm BoreCylinders feature our patented snap-cap design: a resilient retainer seal that aids in absorbing minor piston impact.20mm BoreCylinders feature our patented stainless steel wire form end cap retainer.

Specifications Axis Configuration

X Axis Only

Specifications Device Type

Ball Slide | Linear Slide or Stage

Specifications Drive Type

None

Specifications Orientation

Horizontal

Specifications Stroke Or X Axis Travel High

200 mm

Specifications Stroke Or X Axis Travel Low

2.5 mm
