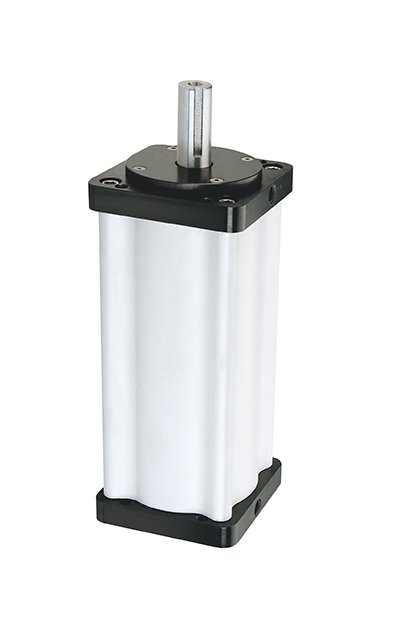

Compact Brute Rotary Vane Actuator - High Torque, 110° Rotation
Compact Brute Rotary Vane Actuator - High Torque, 110° Rotation
SKU:ROT-a9156b
Compact Brute Rotary Vane Actuator - High Torque, Precise Rotation
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Compact Brute Rotary Vane Actuator - High Torque, 110° Rotation
$899.99
Quantity: 1
Claim Your Seller Account
Compact Brute Rotary Vane Actuator - High Torque, 110° Rotation
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Compact Brute Rotary Vane Actuator offers exceptional torque output of 2600 in·lb with a 110° rotation angle, ideal for precise and continuous motion control. Featuring a single shaft design and patented urethane seals, this actuator ensures zero backlash, smooth rotation, and long cycle life. With options for stop cushioning and position feedback, it guarantees precise repeatability in diverse industrial applications.
Product Specifications
Features Features
Stop Cushioning (Optional)Position Feedback (Optional)25 base Comp-Act®'s with torque outputs from 400 in.lbs to 5200 in.lbs.Standard rotations 90, 110, 180, 270, & 290 degreesOne moving part providing:Zero Backlash.No loss of motionSmooth RotationPrecise RepeatabilityContinuous full torque throughout the rotationPatented Urethane seals for:Long cycle life and non-lube serviceActual applications with 25 million cycles and more100's of standard options and modifications
Specifications Actuator Style
Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Length
8.62 in
Specifications Maximum Torque
2600 in·lb
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
15 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Other Bore Size
5 in
Specifications Physical Dimensions
5.98 in²
Specifications Rotational Output
Shaft
Specifications Rotation Angle
110 º | Indexing/Multi-Position (Optional)
Specifications Shaft Length Or Table Height
3 in
Specifications Shaft Or Table Diameter
1.25 in
Specifications Technology Type
Hydraulic (Optional) | Pneumatic
