Compact Chassis Mount Power Transformers
Compact Chassis Mount Power Transformers
SKU:POW-f9ef21
Efficient Triad Quick Pack Power Transformers for compact power systems with reduced size and weight.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Compact Chassis Mount Power Transformers
$39.99
Quantity: 1
Claim Your Seller Account
Compact Chassis Mount Power Transformers
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your power systems with our Triad Quick Pack Chassis Mount Power Transformers. Designed for efficiency and space-saving, these transformers offer reduced size and weight without compromising performance. With bobbin wound construction and split bobbin nonconcentric winding, they eliminate the need for costly electrostatic shielding. Suitable for a wide range of applications, these transformers provide reliable performance and ease of installation, making them ideal for both consumer and institutional use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Dimension A
1 5/8 in
Specifications Dimension B
9/16 in
Specifications Electrical Rating
2.4 V·A
Specifications Height H
1 3/16 in
Specifications Length L
2 1/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
1 3/4 in
Specifications Output Rating
16.0 V CT at 0.15 A
Specifications Primary Frequency
50 Hz | 60 Hz

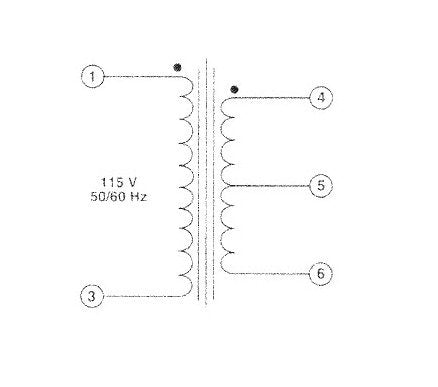

Specifications Primary Voltage
115 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
0.30 lb
Specifications Width W
1 3/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
