Enhance your electronic systems with the Compact Chassis Mount Power Transformers from the renowned Triad Quick Pack series. These transformers, available in six sizes, offer a remarkable reduction in size and weight without compromising on performance. Bobbin wound for space efficiency and featuring split bobbin nonconcentric winding, they eliminate the need for costly electrostatic shielding. With Hi-pot testing, Class B insulation, and suitable for quick connects or soldering, these transformers ensure reliable and efficient power delivery.
Product Specifications
Specifications Dimension A
1 5/8 in
Specifications Dimension B
9/16 in
Specifications Electrical Rating
2.4 V·A
Specifications Height H
1 3/16 in
Specifications Length L
2 1/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
1 3/4 in
Specifications Output Rating
48.0 V CT at 0.05 A

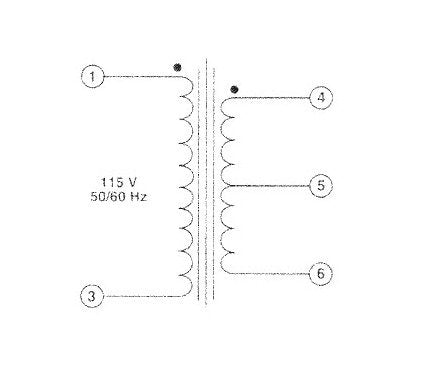

Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
0.30 lb
Specifications Width W
1 3/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
