The Compact Chassis Mount Power Transformers from the Triad Quick Pack series are designed to offer a significant reduction in size and weight while maintaining high performance standards. With bobbin-wound construction for minimized size, these transformers come in six sizes to cater to diverse applications. Featuring split bobbin nonconcentric winding, these transformers eliminate the need for costly electrostatic shielding. They are equipped with center tap transformer contacts suitable for quick connects or soldering, making them ideal for efficient power distribution and management.
Product Specifications
Specifications Dimension A
2 5/16 in
Specifications Dimension B
1 1/16 in
Specifications Electrical Rating
30.0 V·A
Specifications Height H
1 15/16 in
Specifications Length L
3 1/4 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
2 13/16 in
Specifications Output Rating
16.0 V CT at 2.0 A
Specifications Primary Frequency
50 Hz | 60 Hz

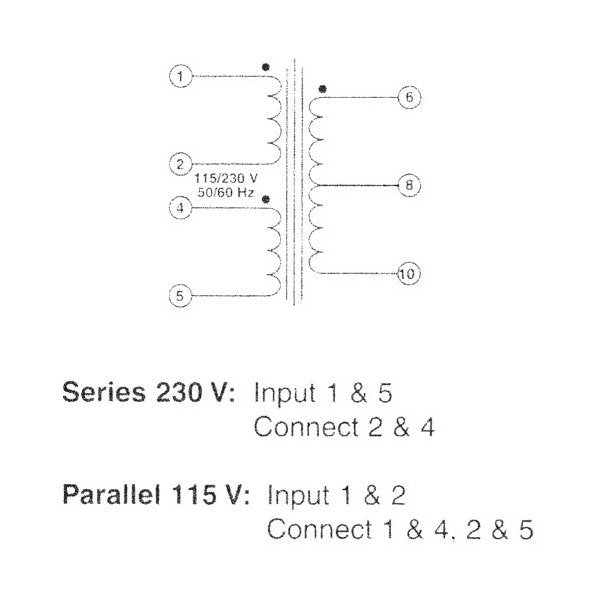

Specifications Primary Voltage
115 V | 230 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
1.10 lb
Specifications Width W
1 11/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
