Compact Chassis Mount Power Transformers
Compact Chassis Mount Power Transformers
SKU:POW-328795
Compact Chassis Mount Power Transformers by Triad, ideal for space-saving applications with optimized electrical performance.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Compact Chassis Mount Power Transformers
$59.99
Quantity: 1
Claim Your Seller Account
Compact Chassis Mount Power Transformers
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

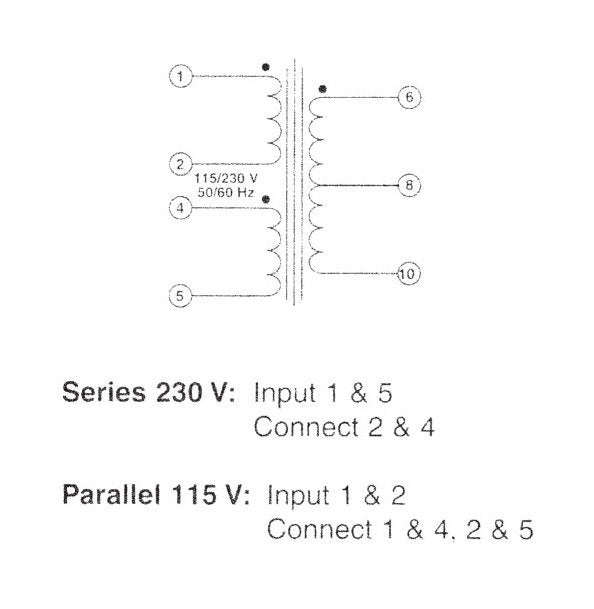

Ideal for space-constrained applications, the Chassis Mount Quick Pack⢠Power Transformers by Triad offer a remarkable reduction in size and weight while maintaining a robust electrical performance. These transformers, available in six sizes, feature bobbin-wound construction for compact design, split bobbin nonconcentric winding for cost savings, and versatile terminations suitable for quick connects or soldering. With an electrical rating of 100 V·A and a center tap output of 120.0 V CT at 0.85 A, these transformers are hi-pot tested at 2,500 VRMS and comply with Class B insulation standards for temperatures up to 130 ºC.
Product Specifications
Specifications Dimension A
3 1/16 in
Specifications Dimension B
1 5/16 in
Specifications Electrical Rating
100 V·A
Specifications Height H
2 9/16 in
Specifications Length L
4 1/32 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
3 9/16 in
Specifications Output Rating
120.0 V CT at 0.85 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
2.80 lb
Specifications Width W
2 1/4 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
