The Chassis Mount Quick Pack™ Power Transformers from Triad offer a revolutionary reduction in size and weight without compromising performance. These transformers, available in various sizes, are designed for a wide range of applications. Bobbin wound for space efficiency and reduced weight, they feature split bobbin nonconcentric winding to eliminate the need for costly electrostatic shielding. With quick connect or soldering termination options, these transformers are versatile and reliable.
Product Specifications
Specifications Dimension A
1 5/8 in
Specifications Dimension B
9/16 in
Specifications Electrical Rating
2.4 V·A
Specifications Height H
1 3/16 in
Specifications Length L
2 1/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
1 3/4 in
Specifications Output Rating
28.0 V CT at 0.085 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V

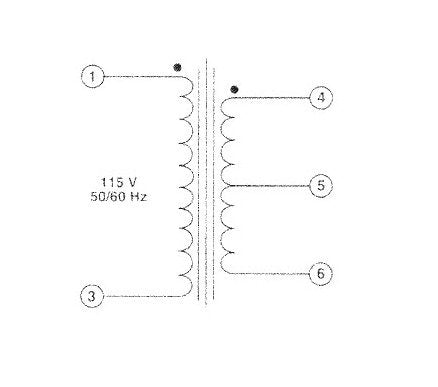

Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
0.30 lb
Specifications Width W
1 3/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
