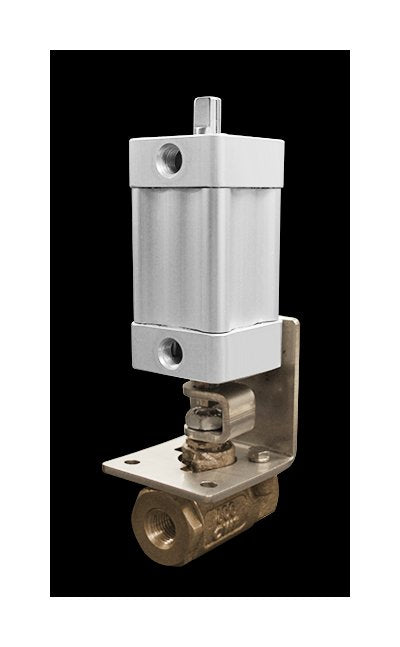

Enhance your valve systems with the Compact CL Valve Actuator, offering high precision and reliability. This pneumatic Vane Actuator provides rotary motion, ensuring smooth On/Off operation with a torque range of 21 to 90 in-lb. Featuring a spring return option with easy spring tension adjustment and a worm drive mechanism, this heavy-duty actuator is ideal for industrial applications requiring efficiency and safety.
Product Specifications
Features Features
Limit Switch / Remote Position Indicator (Optional)Manual Override of Power ActuatorNon-hazardousHeavy Duty Double Acting Ball Valve SystemsSpring Return Valve operatorsSingle acting with spring close or openValve Operator Systems
Specifications Acting Type
Double Acting (Air to Air)
Specifications Actuation Method
Pneumatic
Specifications Actuator Torque High
90 in·lb
Specifications Actuator Torque Low
21 in·lb
Specifications Actuator Type
Vane Actuator
Specifications Full Range Of Rotary Motion
Quarter Turn (90º)
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Operation
On/Off (Isolating)
Specifications Torque
140 to 800 in·lb
Specifications Valve Motion
Rotary Motion Valve
Specifications Valve Size
1/4 to 3 in
