Compact Digital Strain Gage Module
Compact Digital Strain Gage Module
SKU:INS-b11d95
High-performance Digital Strain Gage Module for precision measurement applications.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
Compact Digital Strain Gage Module
$399.99
Quantity: 1
Claim Your Seller Account
Compact Digital Strain Gage Module
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Compact Digital Strain Gage Module (DSC) is a high-performance signal conditioner designed for applications demanding precision and stability. With a miniature package suitable for small enclosures, this module supports up to 500 readings/second and includes software tools for seamless operation. Ideal for industries like aerospace, automotive, and marine, it features a 4-wire bridge measurement, dynamic signal filters, and a wide operating temperature range. From reliable bridge excitation to customizable data transmission rates, the Compact DSC offers versatility and accuracy in a compact form factor.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications 0
AerospaceIndustrial WeighingMarineAutomotive
Dsc Module Mounting And Interconnection 0

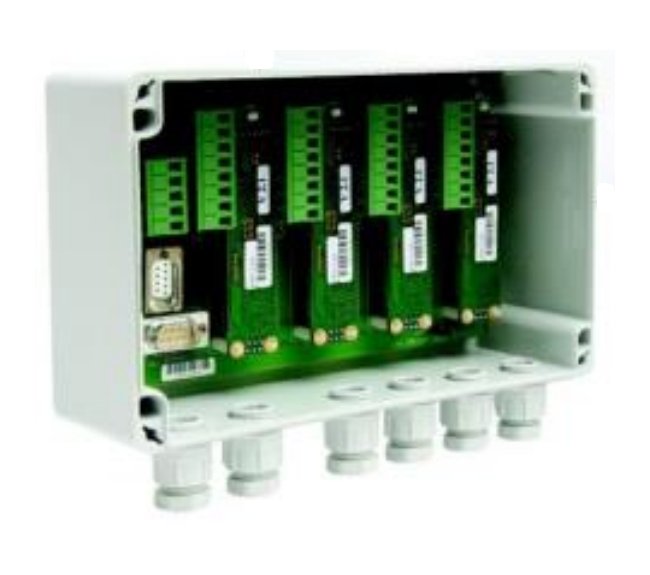

DSC module mounting and interconnection
Enclosure Specifications 0
Enclosure Specifications
Features Benefits 0
Miniature package that fits into small enclosures.Ideal for single or multiple sensor systems.Up to 500 readings/second.Software tools included.
Specifications Bridge Excitation Voltage
4.5 to 5.25 (5 typical) VDC
Specifications Bridge Measurement
4-wire
Specifications Bridge Resistance
320 to 5,000 (350, typical) Ohms
Specifications Bridge Sensitivity
3 to 3 (2.5, typical) mV/V
Specifications Data Cable Length Rs232
15 to 20 meters (49 to 66 feet), maximum. (Depending on Data Transmission rate, Single sensor only).
Specifications Data Cable Length Rs485 Can
1,000 meters (3,280 feet), maximum (Dependent on Data transmission rate and number of sensors)
Specifications Data Transmission Rate Can
20K - 1M bps
Specifications Data Transmission Rate Rs232
2,400 - 230,400 bps
Specifications Data Transmission Rate Rs485
2,400 - 230,400 bps
Specifications Humidity
0 to 95 %RH
Specifications Internal Resolution
16 Million counts/divisions
Specifications Non Linearity Before Linearization
25, maximum (5, typical) ppm/F.R
Specifications Power Supply Current
60, maximum (45, typical max. with 350 Ohm Bridge) mA
Specifications Power Supply Ripple
100, maximum mVAC PK-to-PK
Specifications Power Supply Voltage
5.8 to 18 (12, recommended) VDC
Specifications Power Supply Wattage
450, typical with 350 Ohm Bridge mW
Specifications Resolution At 100hz Noise Stable Over 100s
50,000 counts/divisions
Specifications Resolution At 10hz Noise Stable Over 100s
120,000 counts/divisions
Specifications Resolution At 1hz Noise Stable Over 100s
200,000 counts/divisions
Specifications Resolution At 500hz Noise Stable Over 100s
18,000 counts/divisions
Specifications Signal Filter
Dynamic recursive type - user programmable
Specifications Stability With Temperature Gain
3 to 5 ppm/°C (1.7 to 2.8 ppm/°F)
Specifications Stability With Temperature Offset
1 to 4 ppm/°C (0.6 to 2.2 ppm/°F)
Specifications Stability With Time Gain
30, maximum (first year) ppm/F.R
Specifications Stability With Time Offset
80, maximum (20, typical) ppm/F.R
Specifications Temperature Range Operating
-40 to 85 °C (-40 to 185 °F)
Specifications Temperature Range Storage
-40 to 85 °C (-40 to 185 °F)
