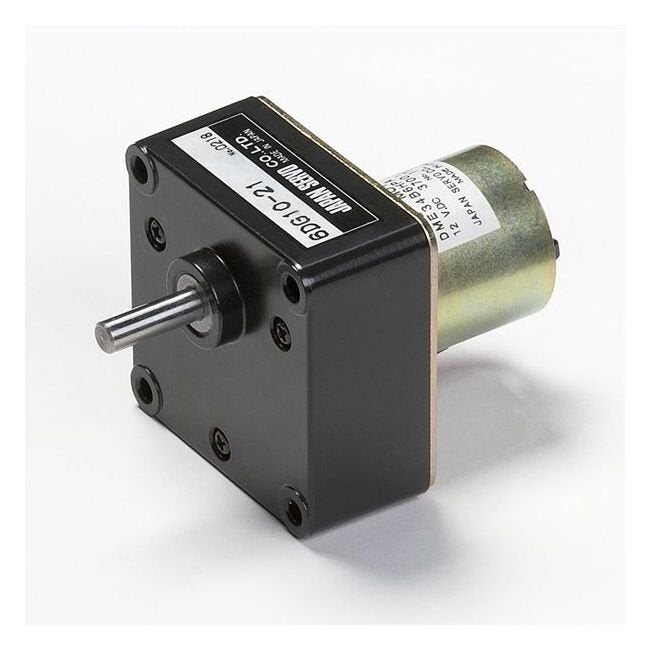

Experience unparalleled performance with the DME34 Series Motor with Gearbox 60G. This compact motor boasts high power ranging from 0.7 W to 26 W, ensuring optimal efficiency. With a long-life design allowing over 1 million cycles of intermittent operation, high output, high radial load capacity, and low noise features, this motor is a reliable powerhouse. The availability of various gear heads and reduction ratios, along with options for a magnetic revolution sensor and noise filter, makes it versatile for a wide range of institutional and government applications.
Product Specifications
Additional Information 0
DME34B6HP.jpg | Gear-Head Design | Motor Selection Guide
Customize 0
Custom Designs
Dimensions 0
Specifications Current Rating
100 mA | 0.1 A
Specifications Frame Size
61 x 61 mm
Specifications Gear Ratio
12.5
Specifications Model Code
SB
Specifications Note
6DG gearbox are available with either 4.5 mm diameter mounting holes or M4 x 6 mm tapped holes. Gearboxes with 4.5 mm diameter mounting holes are available from stock. When ordering, please write the motor model and gearbox model numbers separately, as in the following example :DME34B6HPB (Pinion Shaft Motor) 6DG_ (Gearbox) Gearboxes with M4 x 6 mm tapped mounting holes are available on request. When ordering, please write the combine motor and gearbox model, as in the following example: DME34B6H_B
Specifications Product Type
DC Motor with Gearbox 60G
Specifications Rated Output
1.3 W
Specifications Rated Speed
264 r/min
Specifications Rated Torque
5.55 oz·in | 0.04 N·m
Specifications Rated Voltage
24 V
Specifications Series
DME34
