Compact Dual Primary Dual Secondaries PC Mount Power Transformer
Compact Dual Primary Dual Secondaries PC Mount Power Transformer
SKU:POW-28d049
Versatile power transformer for PC board and solid state designs with dual primaries and secondaries. Meets industry standards.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Compact Dual Primary Dual Secondaries PC Mount Power Transformer
$24.99
Quantity: 1
Claim Your Seller Account
Compact Dual Primary Dual Secondaries PC Mount Power Transformer
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

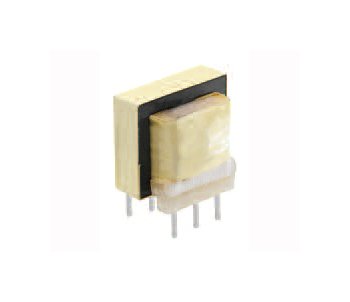

Ideal for PC board and power supply designs, this compact power transformer by Triad offers unmatched versatility. Featuring dual primary and dual center tapped secondary configurations, it meets power, control, and instrumentation needs. With a primary voltage of 115V, secondary voltages in series and parallel, hi-pot testing at 1,500 VRMS, and compliance with industry standards, this transformer ensures reliable performance for a range of applications.
Product Specifications

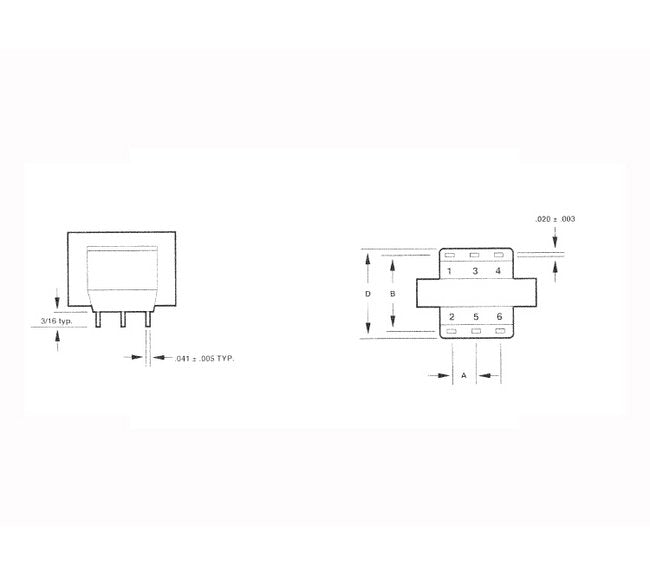

Specifications Depth D
1 5/32 in
Specifications Dimension A
5/16 in
Specifications Dimension B
1 in
Specifications Electrical Rating
1 1/2 V·A
Specifications Height H
1 3/16 in
Specifications Length L
1 25/64 in
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Secondary Voltage In Parallel
58.0 V at 0.026 A
Specifications Secondary Voltage In Series
116.0 V CT at 0.013 A
Specifications Technical Notes
Hi-pot tested at 1,500 VRMS.
Specifications Transformer Contact Type
Center Tap
Specifications Weight
3.5 oz
