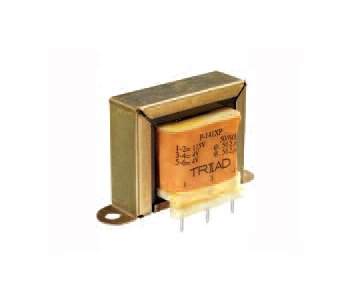

Compact Dual Secondary Power Transformer
Compact Dual Secondary Power Transformer
SKU:POW-365c4c
Compact Dual Secondary Power Transformer for PC board and power supply designs. Offers versatile voltage configurations for power and control applications.
Regular price
$42.99
Regular price
Sale price
$42.99
Unit price
per
Initiate Order
Compact Dual Secondary Power Transformer
$42.99
Quantity: 1
Claim Your Seller Account
Compact Dual Secondary Power Transformer
$42.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Ideal for PC board and solid state power supply designs, the Compact Dual Secondary Power Transformer boasts a single or dual primary with dual center tapped secondary configurations. Meeting power and control needs, it features Electrical Rating of 7 1/2 V·A, Hi-pot tested at 1,500 VRMS. With Primary Voltage of 115 V, and Secondary Voltage options in Series and Parallel configurations, this transformer is versatile and reliable for various applications.
Product Specifications

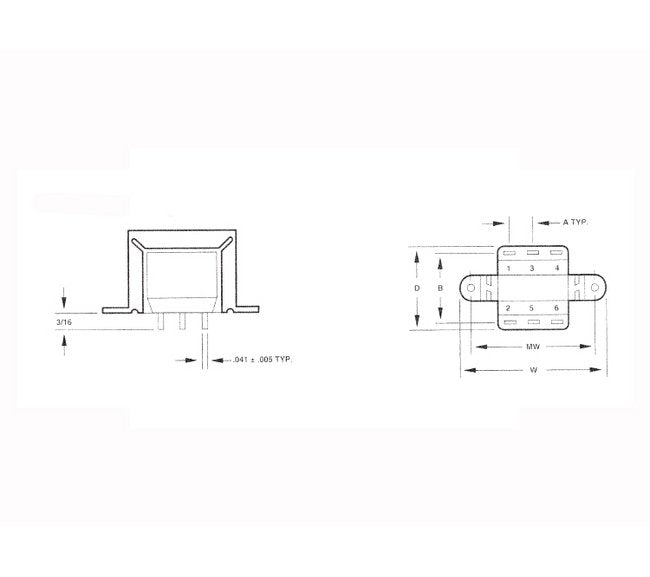

Specifications Depth D
1 15/32 in
Specifications Dimension A
13/32 in
Specifications Dimension B
1 5/16 in
Specifications Electrical Rating
7 1/2 V·A
Specifications Height H
1 5/8 in
Specifications Length L
1 61/64 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Width
2 3/8 in
Specifications Primary Frequency
50 Hz | 60 Hz

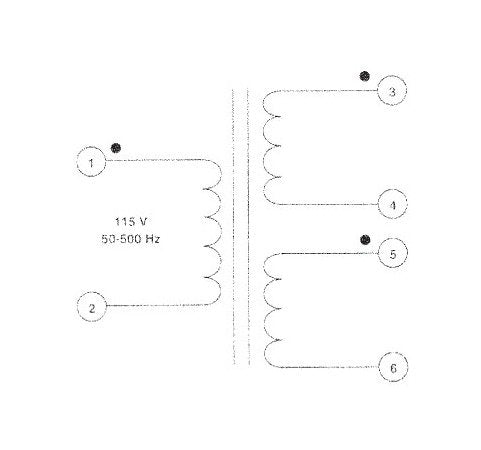

Specifications Primary Voltage
115 V
Specifications Secondary Voltage In Parallel
4.0 V at 1.88 A
Specifications Secondary Voltage In Series
8.0 V CT at 0.940 A
Specifications Technical Notes
Hi-pot tested at 1,500 VRMS.
Specifications Transformer Contact Type
Center Tap
Specifications Weight
10.5 oz
Specifications Width W
2 13/16 in
