Compact Fittings ISO - Nickel Plated Brass 90° Connector, 1/2 in, M20 Thread

Name: Compact Fittings ISO - Nickel Plated Brass 90° Connector, 1/2 in, M20 Thread
Brand: Anamet Electrical, Inc.
SKU: FIT-1ef2ad
Price: 29.99 USD
Availability: OutOfStock

SKU:FIT-1ef2ad

Premium Nickel Plated Brass Fittings - UL Listed, CSA Certified, RoHS & WEEE Compliant, Superior Corrosion Resistance

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

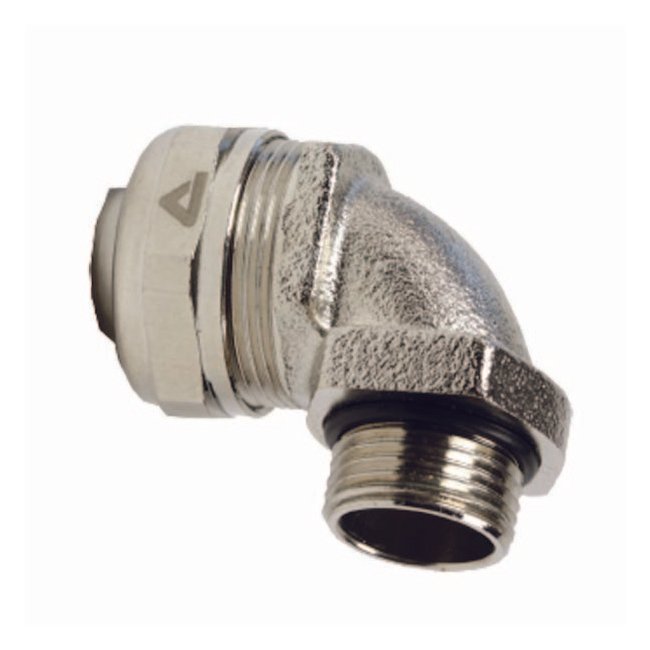

Our Nickel Plated Brass Compact Fittings ISO are meticulously engineered with a four-piece construction for superior performance. Featuring a gland nut, sealing ring, grounding cone, and body, these fittings ensure a secure connection to boxes. Crafted from high-grade brass, they exhibit exceptional corrosion resistance, strength, and durability. Certified by UL, CSA, RoHS, and WEEE, these fittings meet stringent quality standards for reliability and safety in various applications.

Product Specifications

Specifications Connector Type

90°

Specifications Core Material

Brass

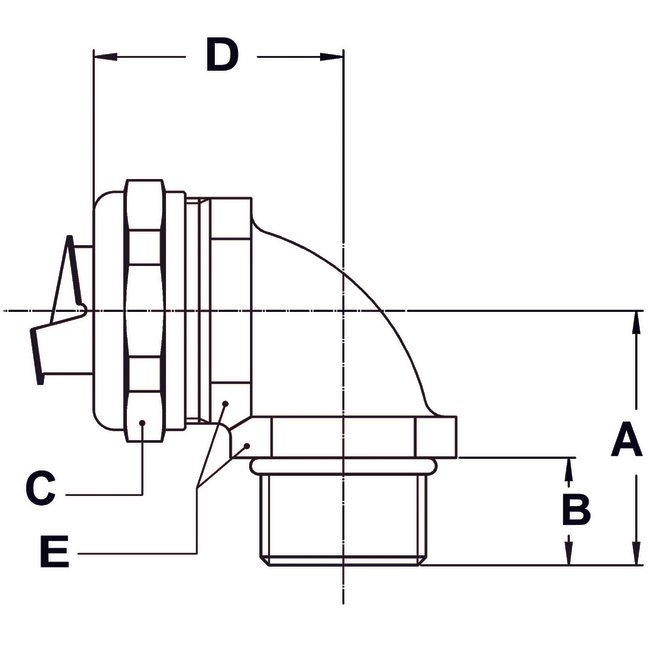

Specifications Dimension A

1.110 in

Specifications Dimension B

0.393 in

Specifications Dimension C

1.141 in

Specifications Dimension D

1.338 in

Specifications Dimension E

1.063 in

Specifications Electrical Trade Size

1/2 in

Specifications Ingress Protection Ip Rating

Ingress Protection (IP) 66/67

Specifications Jacket Benefits

Liquid Tight

Specifications Thread Type

M20 X 1.5

Specifications Type

Compact Nickel Plated Brass

Compact Fittings ISO - Nickel Plated Brass 90° Connector, 1/2 in, M20 Thread
