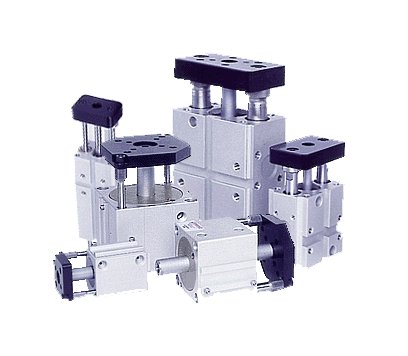

Compact GC 3000 Guided Air Cylinders

Name: Compact GC 3000 Guided Air Cylinders
Brand: Compact Automation Products
SKU: SLI-205ab3
Price: 249.99 USD
Availability: OutOfStock

SKU:SLI-205ab3

Compact GC 3000 Series Guided Air Cylinders: Precise actuation with compact design, ideal for diverse applications. Adjustable stroke & shock absorbers available.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Compact GC 3000 Series Guided Air Cylinders are designed with two long guide bushings in the head end, ensuring precise linear actuation. Featuring a short overall length and low unit weight, these cylinders offer exceptional performance and durability. With options for adjustable stroke, double end rod, and shock absorbers, they provide versatility for various applications.

Product Specifications

Features Features

Adjustable Stroke (Optional)Double End Rod (Optional)Shock Absorbers (Optional)

Specifications Actuation Type

Pneumatic

Specifications Axis Configuration

X Axis Only

Specifications Bore Size High

40 mm

Specifications Bore Size Low

12 mm

Specifications Cylinder Action

Single

Specifications Cylinder Configuration

Guided | Simple

Specifications Cylinder Style

Rectangular

Specifications Cylinder Type

Air Cylinder

Specifications Device Type

Linear Actuator | Linear Slide or Stage | Linear Thruster | Pneumatic Thruster | Rod Type

Specifications Material

Aluminum

Specifications Metal Bushing

Yes

Specifications Mounting Type

Flange (Optional) | Multi-Mount Bracket | Other (Optional) | Threaded

Specifications Number Of Shafts

Three

Specifications Orientation

Horizontal

Specifications Stroke Or X Axis Travel High

150 mm

Specifications Stroke Or X Axis Travel Low

10 mm
