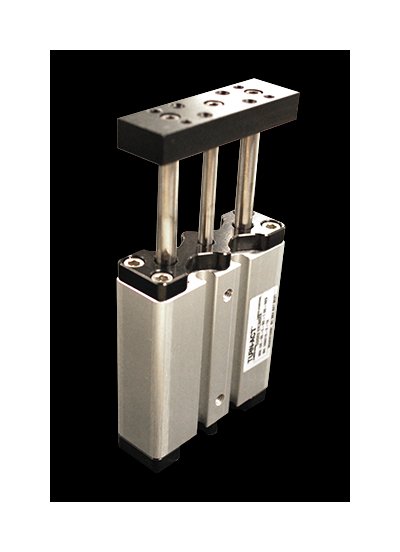

Compact GRC Guide Rod Cylinders
Compact GRC Guide Rod Cylinders
SKU:SLI-46d3ad
Compact GRC Guide Rod Cylinders offer precise repeatability, smooth operation, and high energy absorption for institutional demands.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
Compact GRC Guide Rod Cylinders
$349.99
Quantity: 1
Claim Your Seller Account
Compact GRC Guide Rod Cylinders
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Compact GRC Guide Rod Cylinders by Compact Automation Products offer unparalleled guided cylinder performance. Featuring high-strength yet lightweight extruded bodies and the rigid support of composite or roller ball bearings with an Enersorb piston, these cylinders ensure precise repeatability, smooth operation, and high noise and energy absorption. With lift forces ranging from 16 to 490 lbs, extended cycle life, and non-lube service, these cylinders cater to the most demanding institutional needs. Available in four base models with bore sizes from 1/2 to 2 1/2 inches, the GRC cylinders are designed for durability, reliability, and customizability, meeting the stringent standards of government and institutional procurement.
Product Specifications
Features Features
Double End Rod (Optional)4 Base Models1/2, 3/4, 1 1/4 and 2 1/2 inch BoresLift forces from 16-490 lbs.Precise repeatabilitySmooth operationHigh noise and energy absorptionExtended cycle life and non-lube serviceVarious custom options available.
Specifications Actuation Type
Pneumatic
Specifications Axis Configuration
X Axis Only
Specifications Ballroller Bearing
Optional
Specifications Bore Size High
2.5 in
Specifications Bore Size Low
0.5 in
Specifications Carriage Load High
490 lb
Specifications Carriage Load Low
16 lb
Specifications Cylinder Action
Single
Specifications Cylinder Configuration
Guided | Simple
Specifications Cylinder Style
Rectangular
Specifications Cylinder Type
Air Cylinder
Specifications Device Type
Linear Actuator | Linear Slide or Stage | Linear Thruster | Pneumatic Thruster | Rod Type
Specifications Drive Type
None
Specifications Material
Aluminum
Specifications Metal Bushing
Yes
Specifications Mounting Type
Flange (Optional) | Threaded
Specifications Number Of Shafts
Three
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Orientation
Horizontal
Specifications Stroke Or X Axis Travel High
8 in
Specifications Stroke Or X Axis Travel Low
2 in
Specifications Thermoplasticcomposite Bushing
Optional
