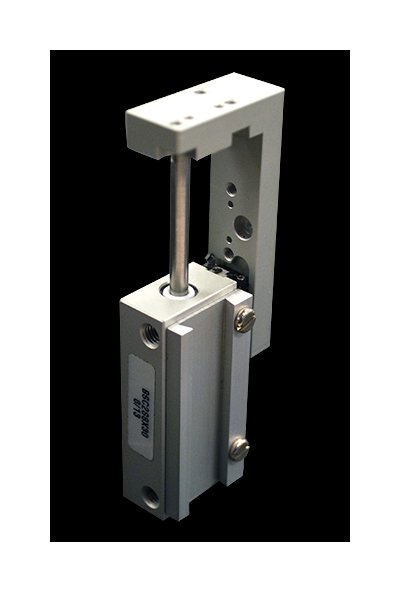

Compact Low Base Ball Slide Cylinder - 83mm
Compact Low Base Ball Slide Cylinder - 83mm
SKU:SLI-3a10dc
Compact Cylinder with 83mm Base Length for precision automation. High load-bearing capacity with patented impact absorption design.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
Compact Low Base Ball Slide Cylinder - 83mm
$249.99
Quantity: 1
Claim Your Seller Account
Compact Low Base Ball Slide Cylinder - 83mm
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Compact Low Base Ball Slide Cylinder with an 83mm base length offers exceptional space efficiency combined with high load-bearing capability for precision industrial automation. Featuring a factory-matched recirculation ball slide rail, this cylinder is designed by Compact Automation Products to deliver reliability and performance in X-axis applications. The patented snap-cap design with a resilient retainer seal ensures impact absorption, making it ideal for demanding industrial environments.
Product Specifications
Dimensions Base Height High
19.6 mm
Dimensions Base Height Low
19.6 mm
Dimensions Base Length High
505.6 mm
Dimensions Base Length Low
83 mm
Dimensions Carriage Length High
32 mm
Dimensions Carriage Length Low
32 mm
Dimensions Carriage Width High
12.7 mm
Dimensions Carriage Width Low
12.7 mm
Features Features
8mm and 12mm BoreCylinders feature our patented snap-cap design: a resilient retainer seal that aids in absorbing minor piston impact.20mm BoreCylinders feature our patented stainless steel wire form end cap retainer.
Specifications Axis Configuration
X Axis Only
Specifications Device Type
Ball Slide | Linear Slide or Stage
Specifications Drive Type
None
Specifications Orientation
Horizontal
Specifications Stroke Or X Axis Travel High
200 mm
Specifications Stroke Or X Axis Travel Low
2.5 mm
