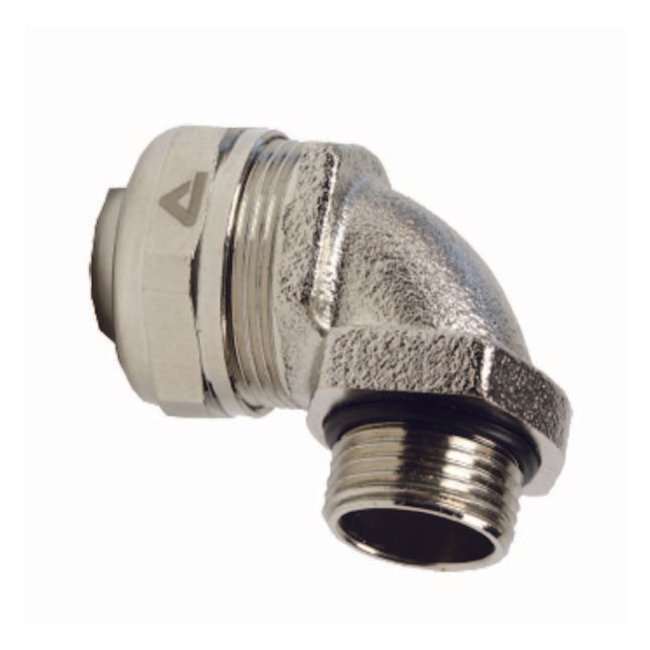

Compact Nickel Plated Brass Fittings, 90° Connector, 1-1/4 in, M40 X 1.5
Compact Nickel Plated Brass Fittings, 90° Connector, 1-1/4 in, M40 X 1.5
SKU:FIT-cb901b
Premium Compact Nickel Plated Brass Fittings with superior corrosion resistance and multiple certifications for reliable performance in diverse applications.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Compact Nickel Plated Brass Fittings, 90° Connector, 1-1/4 in, M40 X 1.5
$29.99
Quantity: 1
Claim Your Seller Account
Compact Nickel Plated Brass Fittings, 90° Connector, 1-1/4 in, M40 X 1.5
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Nickel Plated Brass Compact Fittings ISO are expertly designed with a four-piece construction, including a gland nut, sealing ring, high tensile grounding cone, and body for superior performance. Featuring excellent corrosion resistance, strength, and durability, these fittings come with UL LISTED, CSA CERTIFIED, and RoHS WEEE COMPLIANT certifications. The included sealing ring facilitates easy connection to boxes, ensuring a secure fit. Ideal for various applications requiring reliable fittings that meet stringent procurement standards.
Product Specifications
Specifications Connector Type
90°
Specifications Core Material
Brass

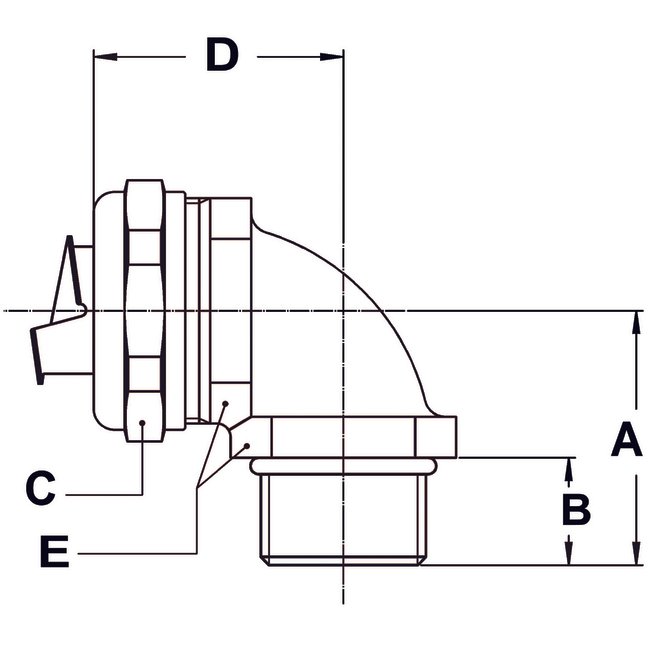

Specifications Dimension A
1.811 in
Specifications Dimension B
0.511 in
Specifications Dimension C
2.086 in
Specifications Dimension D
1.968 in
Specifications Dimension E
2.047 in
Specifications Electrical Trade Size
1-1/4 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Jacket Benefits
Liquid Tight
Specifications Thread Type
M40 X 1.5
Specifications Type
Compact Nickel Plated Brass
