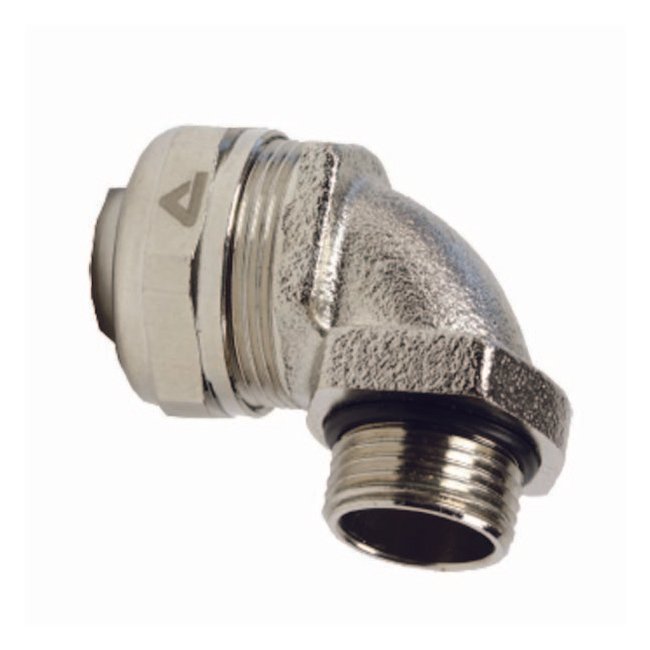

Compact Nickel Plated Brass Fittings ISO - 90°, 2 in
Compact Nickel Plated Brass Fittings ISO - 90°, 2 in
SKU:FIT-472612
Premium 90° Compact Nickel Plated Brass Fitting ISO - UL/CSA Certified, RoHS Compliant
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Compact Nickel Plated Brass Fittings ISO - 90°, 2 in
$24.99
Quantity: 1
Claim Your Seller Account
Compact Nickel Plated Brass Fittings ISO - 90°, 2 in
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Compact Nickel Plated Brass Fitting ISO is a premium-grade solution crafted from nickel plated brass, featuring a four-piece construction for superior durability. Comprising a gland nut, sealing ring, high tensile grounding cone, and body, this fitting ensures a secure connection to boxes with its included sealing ring. With exceptional resistance to corrosion, robust strength, and lasting durability, this fitting is ideal for demanding applications. Certified by UL, CSA, and compliant with RoHS/WEEE regulations, it meets stringent quality standards.
Product Specifications
Specifications Connector Type
90°
Specifications Core Material
Brass

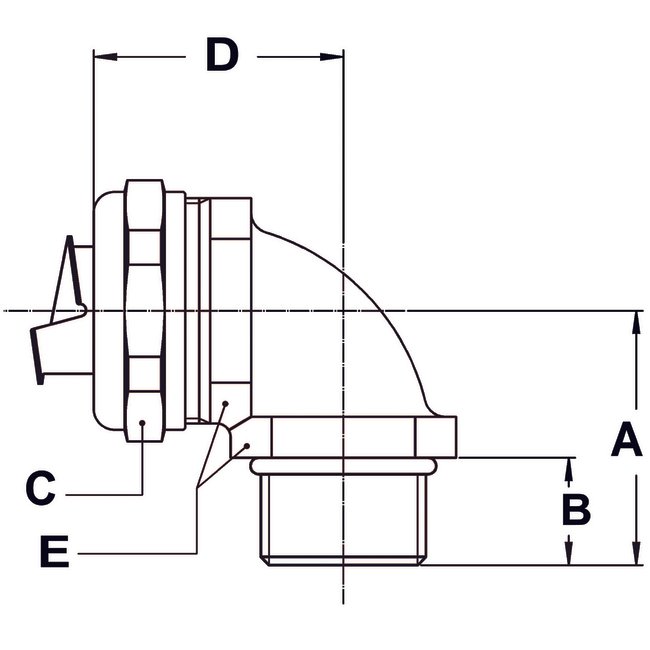

Specifications Dimension A
2.441 in
Specifications Dimension B
0.630 in
Specifications Dimension C
2.992 in
Specifications Dimension D
2.677 in
Specifications Dimension E
2.834 in
Specifications Electrical Trade Size
2 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Jacket Benefits
Liquid Tight
Specifications Thread Type
M63 X 1.5
Specifications Type
Compact Nickel Plated Brass
