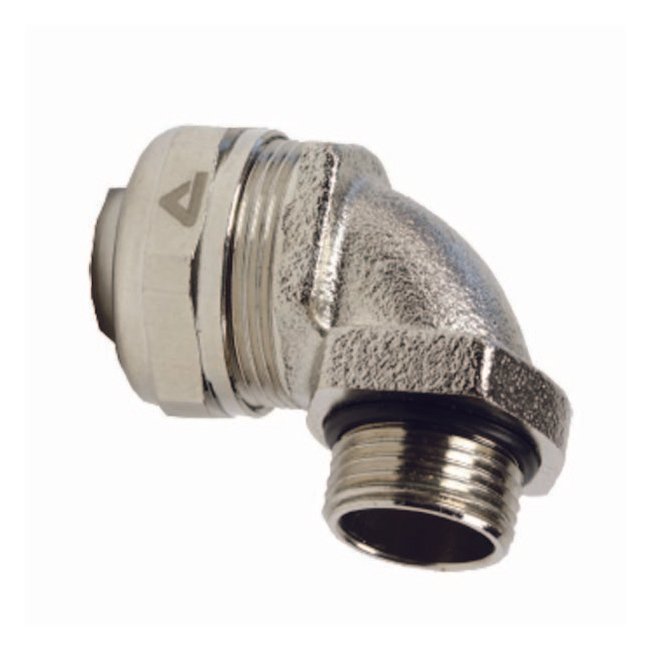

Compact Nickel Plated Brass Fittings ISO - 90°, 3/8 in, M16 X 1.5
Compact Nickel Plated Brass Fittings ISO - 90°, 3/8 in, M16 X 1.5
SKU:FIT-bb5ae1
High-quality Nickel Plated Brass Compact Fittings ISO for secure and durable electrical connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Compact Nickel Plated Brass Fittings ISO - 90°, 3/8 in, M16 X 1.5
$24.99
Quantity: 1
Claim Your Seller Account
Compact Nickel Plated Brass Fittings ISO - 90°, 3/8 in, M16 X 1.5
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your electrical installations with our high-quality Nickel Plated Brass Compact Fittings ISO. This four-piece construction includes a gland nut, sealing ring, grounding cone, and body for secure connections to boxes. With excellent corrosion resistance and durability, these fittings are UL Listed, CSA Certified, and RoHS/WEEE Compliant, ensuring reliability and compliance with industry standards.
Product Specifications
Specifications Connector Type
90°
Specifications Core Material
Brass

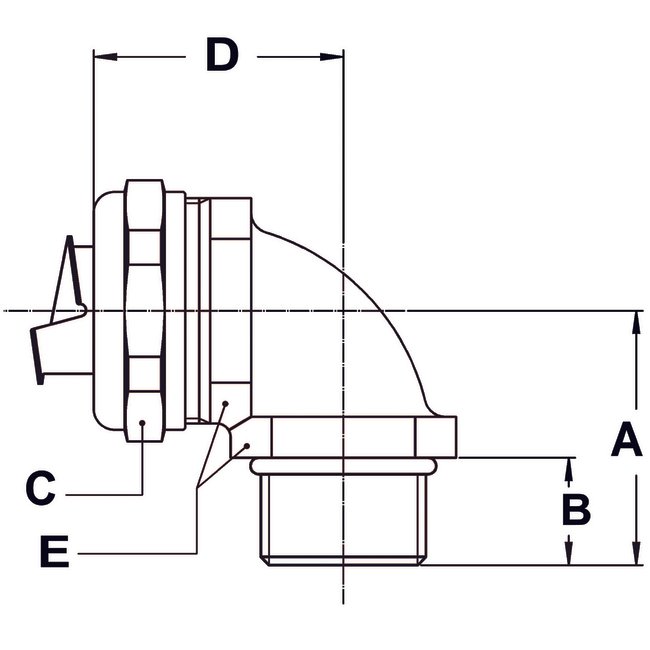

Specifications Dimension A
1.023 in
Specifications Dimension B
0.393 in
Specifications Dimension C
1.023 in
Specifications Dimension D
1.220 in
Specifications Dimension E
0.866 in
Specifications Electrical Trade Size
3/8 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Jacket Benefits
Liquid Tight
Specifications Thread Type
M16 X 1.5
Specifications Type
Compact Nickel Plated Brass
