Compact Nickel Plated Brass Fittings - ISO Certified
Compact Nickel Plated Brass Fittings - ISO Certified
SKU:FIT-543d5a
Durable Nickel Plated Brass Fittings with UL and CSA certifications. Designed for secure box connections. IP66/67 rated for high performance.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Compact Nickel Plated Brass Fittings - ISO Certified
$24.99
Quantity: 1
Claim Your Seller Account
Compact Nickel Plated Brass Fittings - ISO Certified
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

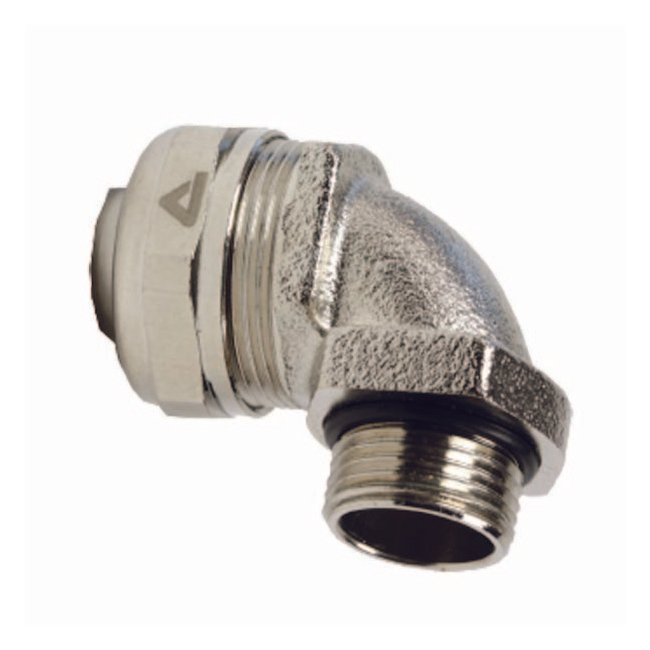

The Nickel Plated Brass Compact Fittings ISO are expertly constructed with a resilient four-piece design comprising a gland nut, sealing ring, high tensile grounding cone, and body. With exceptional corrosion resistance and durability, these fittings ensure secure connections to boxes. Certified by UL, CSA, and compliant with RoHS/WEEE standards, they guarantee top-notch quality. Perfect for demanding environments, these fittings offer a 90° connector type, 3/8 in electrical trade size, and M20 X 1.5 thread type. The ingress protection (IP) rating of 66/67 and liquid-tight jacket benefits make them ideal for various applications.
Product Specifications
Specifications Connector Type
90°
Specifications Core Material
Brass

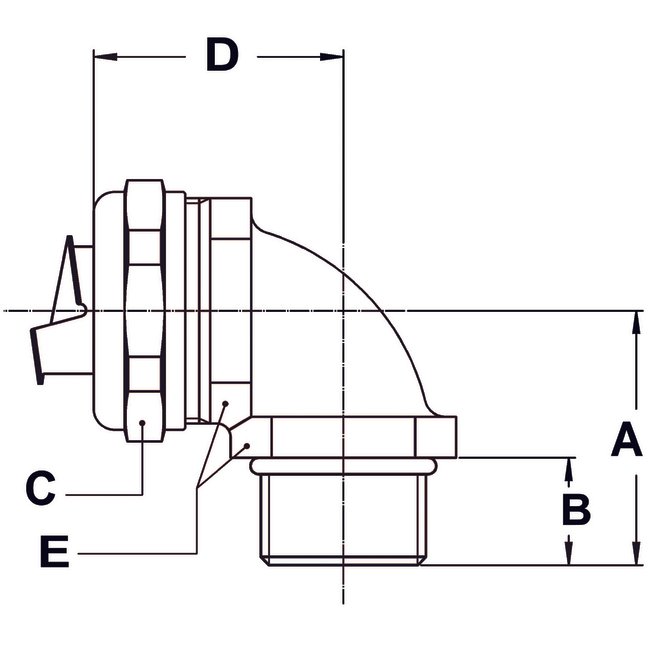

Specifications Dimension A
1.023 in
Specifications Dimension B
0.393 in
Specifications Dimension C
1.023 in
Specifications Dimension D
1.260 in
Specifications Dimension E
0.944 in
Specifications Electrical Trade Size
3/8 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Jacket Benefits
Liquid Tight
Specifications Thread Type
M20 X 1.5
Specifications Type
Compact Nickel Plated Brass
