Compact Nickel Plated Brass Fittings - Straight Type
Compact Nickel Plated Brass Fittings - Straight Type
SKU:FIT-5688f5
Durable and corrosion-resistant compact brass fittings with UL, CSA, RoHS WEEE certifications for secure connections.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Compact Nickel Plated Brass Fittings - Straight Type
$24.99
Quantity: 1
Claim Your Seller Account
Compact Nickel Plated Brass Fittings - Straight Type
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

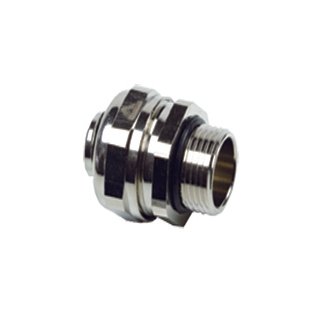

The Nickel Plated Brass Compact Fittings ISO offer a robust four-piece construction featuring a gland nut, sealing ring, high tensile grounding cone, and body. Designed to provide exceptional corrosion resistance, strength, and durability, these fittings ensure secure connections to boxes. With UL Listed, CSA Certified, and RoHS WEEE Compliant certifications, they meet stringent industry standards for safety and quality assurance, making them ideal for both consumer and institutional applications.
Product Specifications
Specifications Connector Type
Straight
Specifications Core Material
Brass

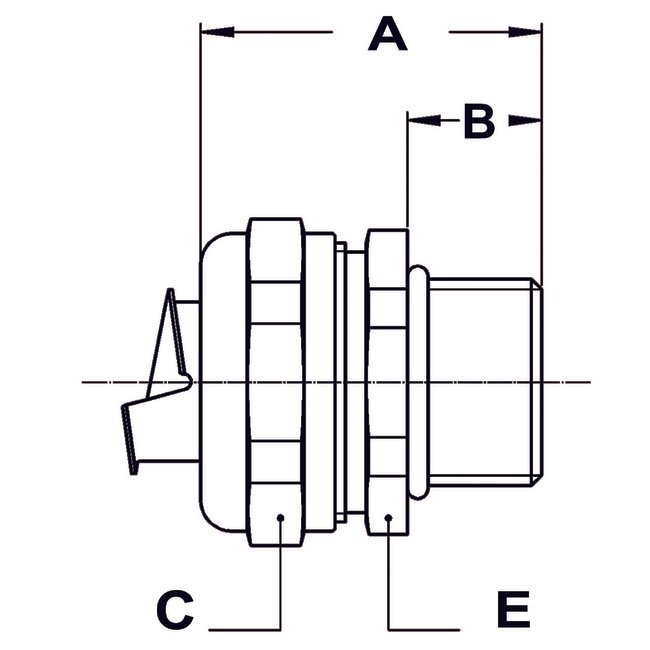

Specifications Dimension A
1.181 in
Specifications Dimension B
0.393 in
Specifications Dimension C
1.023 in
Specifications Dimension E
0.944 in
Specifications Electrical Trade Size
3/8 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Jacket Benefits
Liquid Tight
Specifications Thread Type
M16 X 1.5
Specifications Type
Compact Nickel Plated Brass
