Compact Nickel Plated Brass NPT Fittings 3/4 in
Compact Nickel Plated Brass NPT Fittings 3/4 in
SKU:FIT-98a6fb
High-quality Compact Nickel Plated Brass NPT Fittings for secure box connections. UL LISTED, CSA CERTIFIED, and RoHS compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Compact Nickel Plated Brass NPT Fittings 3/4 in
$24.99
Quantity: 1
Claim Your Seller Account
Compact Nickel Plated Brass NPT Fittings 3/4 in
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

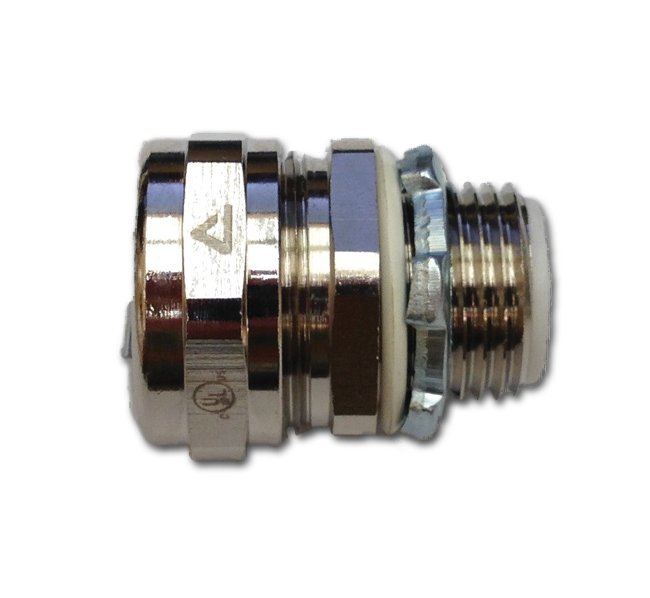

The Compact Nickel Plated Brass NPT Fittings are meticulously constructed with high-quality nickel plated brass, featuring a counter nut, clamping ring, ferrule, and body for secure connections. This fitting includes a sealing ring and galvanized steel lock nut, ensuring a reliable attachment to boxes. With UL LISTED and CSA CERTIFIED compliance, as well as RoHS and WEEE compliance, this fitting meets stringent industry standards, making it ideal for both consumer and institutional applications.
Product Specifications
Specifications Connector Type
Straight
Specifications Core Material
Brass

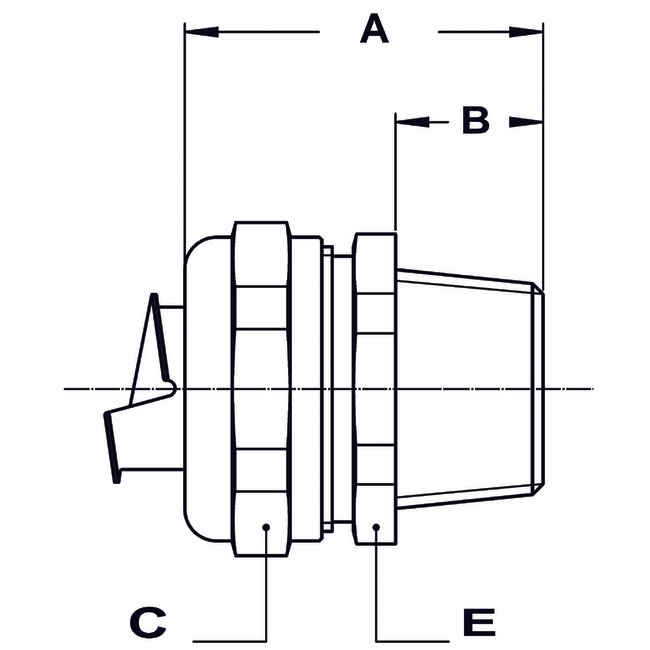

Specifications Dimension A
1.378 in
Specifications Dimension B
0.472 in
Specifications Dimension C
1.378 in
Specifications Dimension E
1.299 in
Specifications Electrical Trade Size
3/4 in
Specifications Ingress Protection Ip Rating
Ingress Protection (IP) 66/67
Specifications Jacket Benefits
Liquid Tight
Specifications Thread Type
NPT
Specifications Type
Compact Nickel Plated Brass
