Compact Power Transformer
Compact Power Transformer
SKU:POW-4153cf
Compact Chassis Mount Quick Pack™ Transformers: Reduced size, efficient performance. Ideal for various power applications.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Compact Power Transformer
$79.99
Quantity: 1
Claim Your Seller Account
Compact Power Transformer
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chassis Mount Quick Pack™ Power Transformers from Triad deliver exceptional performance with a reduced size and weight compared to traditional transformers. Designed for versatility, these transformers are available in six sizes to suit a wide range of applications. Featuring bobbin wound construction for compactness and a split bobbin nonconcentric winding that eliminates the need for costly electrostatic shielding, these transformers offer efficiency and cost-effectiveness. With a center tap contact type and termination suitable for quick connects or soldering, these transformers are ideal for power applications requiring reliable performance. The transformers are hi-pot tested at 2,500 VRMS and include Class B insulation for a maximum temperature of 130°C.
Product Specifications
Specifications Dimension A
3 1/16 in
Specifications Dimension B
1 5/16 in
Specifications Electrical Rating
100 V·A
Specifications Height H
2 9/16 in
Specifications Length L
4 1/32 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
3 9/16 in
Specifications Output Rating
36.0 V CT at 2.8 A
Specifications Primary Frequency
50 Hz | 60 Hz

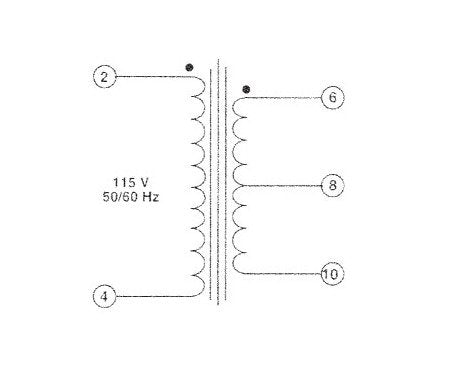

Specifications Primary Voltage
115 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
2.80 lb
Specifications Width W
2 1/4 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
