Compact Power Transformers
Compact Power Transformers
SKU:POW-b020d6
Enhance power efficiency with our compact Chassis Mount Quick Pack™ Power Transformers. Ideal for consumer and institutional use.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Compact Power Transformers
$49.99
Quantity: 1
Claim Your Seller Account
Compact Power Transformers
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your power system with our Chassis Mount Quick Pack™ Power Transformers. Offering a reduced size and weight without compromising on performance, these transformers are ideal for various applications. With bobbin wound construction for space efficiency, split bobbin nonconcentric winding for cost-saving shielding, and easy termination options, these transformers deliver reliable power distribution. Tested for high-potential and Class B insulation, they ensure safety and efficiency up to 130°C. Whether for consumer electronics or institutional equipment, these transformers meet the highest standards of quality and performance.
Product Specifications
Specifications Dimension A
1 11/16 in
Specifications Dimension B
11/16 in
Specifications Electrical Rating
6.0 V·A
Specifications Height H
1 3/8 in
Specifications Length L
2 3/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
2 in
Specifications Output Rating

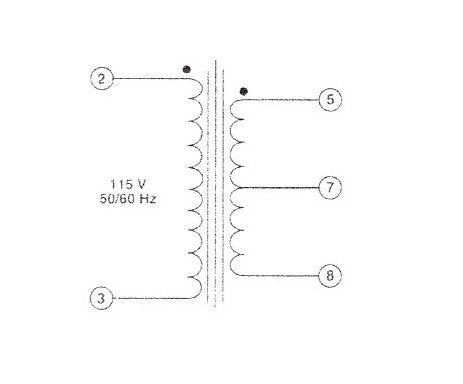

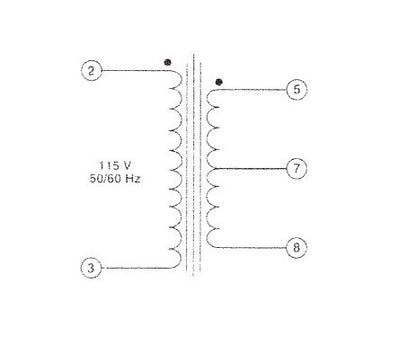

12.6 V CT at 0.5 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
0.40 lb
Specifications Width W
1 1/4 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
