Compact Power Transformers
Compact Power Transformers
SKU:POW-b7a1cb
Experience compact power without compromise with the Chassis Mount Quick Pack™ Power Transformers - ideal for diverse applications.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
Compact Power Transformers
$39.99
Quantity: 1
Claim Your Seller Account
Compact Power Transformers
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chassis Mount Quick Pack™ Power Transformers by Triad offer a remarkable compact design without compromising on performance. Boasting a reduced size and weight compared to traditional transformers, these units are ideal for various applications. Featuring bobbin wound construction for space efficiency, split bobbin nonconcentric winding for cost-saving electrostatic shielding elimination, and multiple termination options for quick installations or soldering.
Product Specifications
Specifications Dimension A
1 11/16 in
Specifications Dimension B
11/16 in
Specifications Electrical Rating
6.0 V·A
Specifications Height H
1 3/8 in
Specifications Length L
2 3/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
2 in
Specifications Output Rating

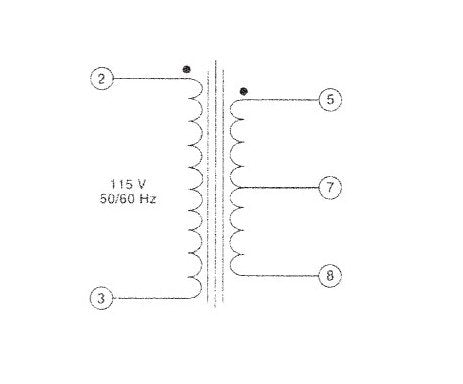

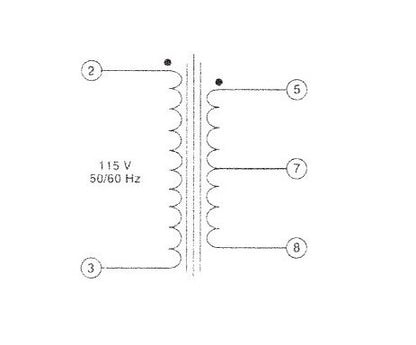

16.0 V CT at 0.4 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
0.40 lb
Specifications Width W
1 1/4 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
