Compact Power Transformers
Compact Power Transformers
SKU:POW-33344a
Cutting-edge Chassis Mount Quick Pack™ Power Transformers offering compact design and efficient power distribution. Ideal for diverse applications.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Compact Power Transformers
$69.99
Quantity: 1
Claim Your Seller Account
Compact Power Transformers
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

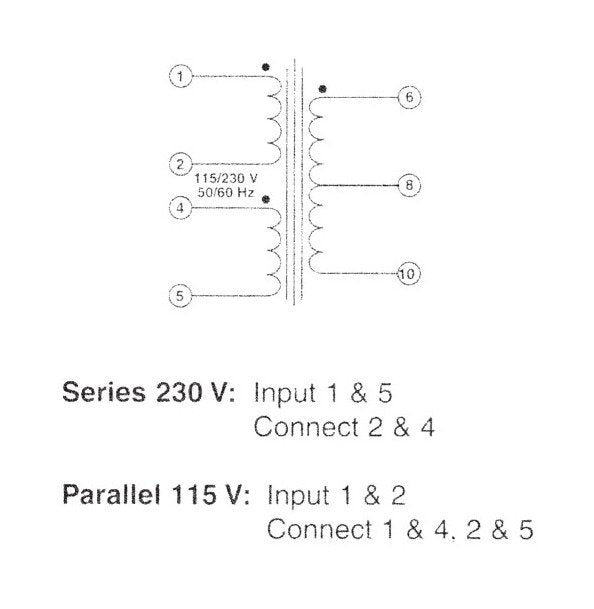

The Chassis Mount Quick Pack™ Power Transformers are part of the cutting-edge Triad Quick Pack series, designed to significantly reduce size and weight without compromising on performance. Ideal for a wide range of applications, these transformers are meticulously bobbin-wound for space-saving efficiency. Featuring split bobbin nonconcentric winding, they eliminate the need for costly electrostatic shielding. With dual primary configuration, high Hi-pot testing at 2,500 VRMS, and Class B insulation supporting up to 130°C temperature, these transformers ensure reliable power distribution. Suitable for quick connects or soldering, they provide an output rating of 24.0 V CT at 1.25 A, making them a versatile and efficient choice for powering various electronic systems.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Dimension A
2 5/16 in
Specifications Dimension B
1 1/16 in
Specifications Electrical Rating
30.0 V·A
Specifications Height H
1 15/16 in
Specifications Length L
3 1/4 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
2 13/16 in
Specifications Output Rating
24.0 V CT at 1.25 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
1.10 lb
Specifications Width W
1 11/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
