Triad Magnetics →

Compact Power Transformers

Compact Power Transformers

POW-2cc06a

Experience compact efficiency and reliable performance with our Chassis Mount Quick Pack™ Power Transformers. Ideal for diverse applications.

$69.99
$69.99
Sale

Initiate Order

Compact Power Transformers

Compact Power Transformers

$69.99

Quantity: 1

Claim Your Seller Account

Compact Power Transformers

Compact Power Transformers

$69.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

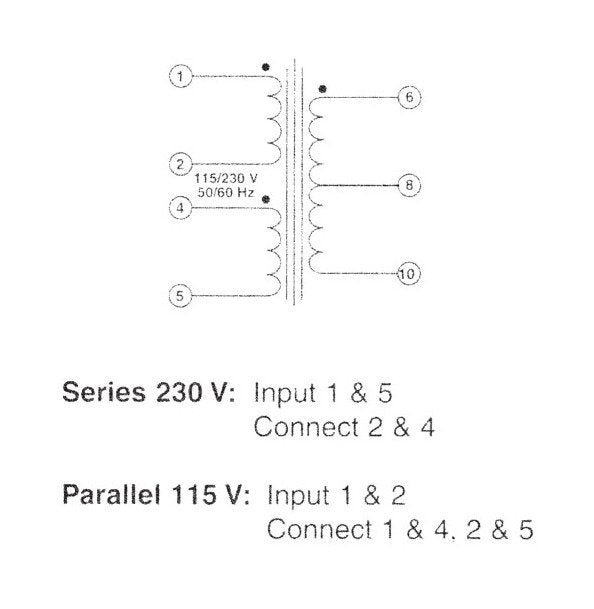

The Chassis Mount Quick Pack™ Power Transformers from the Triad Quick Pack series redefine efficiency with a compact design that greatly reduces size and weight without compromising performance. Featuring bobbin wound construction for space optimization and split bobbin nonconcentric winding for cost-effective electrostatic shielding elimination, these transformers are ideal for a wide range of applications. With a dual primary type and center tap transformer contact, they offer an electrical rating of 100 VA and output rating of 36.0 V CT at 2.8 A. Hi-pot tested at 2,500 VRMS and designed with Class B insulation for a maximum temperature of 130 ºC, these transformers ensure reliable operation. The termination options support quick connects or soldering, making installation hassle-free.

Product Specifications

Specifications Dimension A
3 1/16 in
Specifications Dimension B
1 5/16 in
Specifications Electrical Rating
100 V·A
Specifications Height H
2 9/16 in
Specifications Length L
4 1/32 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
3 9/16 in
Specifications Output Rating
36.0 V CT at 2.8 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
2.80 lb
Specifications Width W
2 1/4 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
