Compact Power Transformers - Chassis Mount Quick Pack™
Compact Power Transformers - Chassis Mount Quick Pack™
SKU:POW-0a510e
Revolutionary compact power transformers for efficient and space-saving installations. Ideal for diverse applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Compact Power Transformers - Chassis Mount Quick Pack™
$49.99
Quantity: 1
Claim Your Seller Account
Compact Power Transformers - Chassis Mount Quick Pack™
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chassis Mount Quick Pack™ Power Transformers by Triad offer a revolutionary reduction in size and weight without compromising performance. With a compact design and bobbin-wound construction, these transformers are engineered for efficiency and space-saving installation. Featuring split bobbin nonconcentric winding for cost-effective electromagnetic shielding, these transformers are perfect for diverse applications. Hi-pot tested at 2,500 VRMS with Class B insulation for safety and durability. Ideal for quick connects or soldering. Upgrade to Triad for reliable power solutions.
Product Specifications
Specifications Dimension A
1 11/16 in
Specifications Dimension B
11/16 in
Specifications Electrical Rating
6.0 V·A
Specifications Height H
1 3/8 in
Specifications Length L
2 3/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
2 in
Specifications Output Rating
48.0 V CT at 0.125 A
Specifications Primary Frequency
50 Hz | 60 Hz

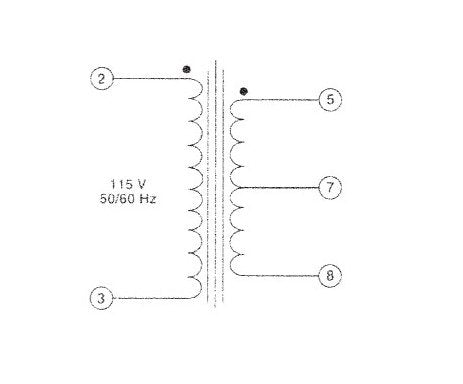

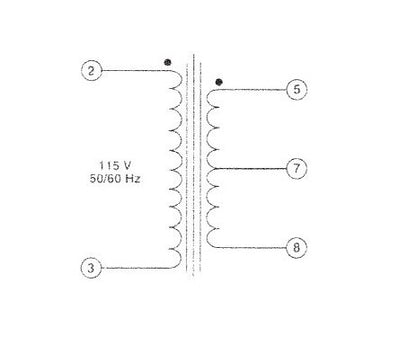

Specifications Primary Voltage
115 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
0.40 lb
Specifications Width W
1 1/4 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
