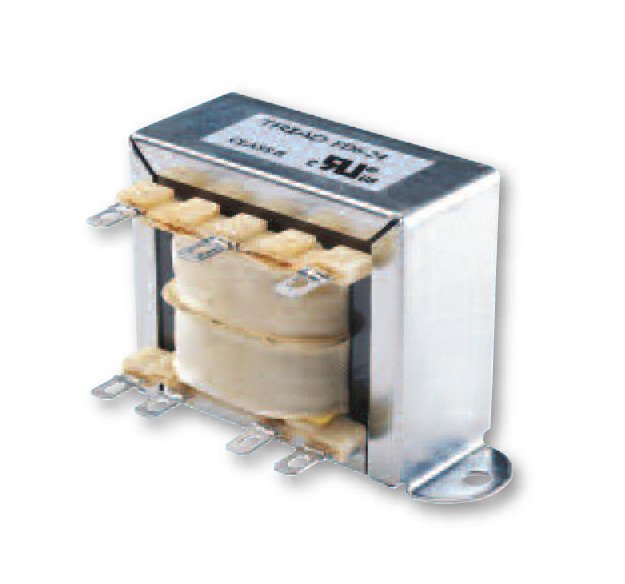

Compact Power Transformers - Chassis Mount Quick Pack™ Transformers
Compact Power Transformers - Chassis Mount Quick Pack™ Transformers
SKU:POW-cffdf4
Enhance power efficiency with Chassis Mount Quick Pack™ Transformers - Compact design, reliable performance
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Compact Power Transformers - Chassis Mount Quick Pack™ Transformers
$79.99
Quantity: 1
Claim Your Seller Account
Compact Power Transformers - Chassis Mount Quick Pack™ Transformers
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Get superior power efficiency with our Chassis Mount Quick Pack™ Power Transformers. Designed to reduce size and weight, these transformers deliver 30.0 VA Electrical Rating, 12.6 V CT at 2.5 A Output Rating, and comply with stringent industry standards like Hi-pot testing at 2,500 VRMS and Class B insulation. Ideal for diverse applications with their compact size and exceptional performance.
Product Specifications

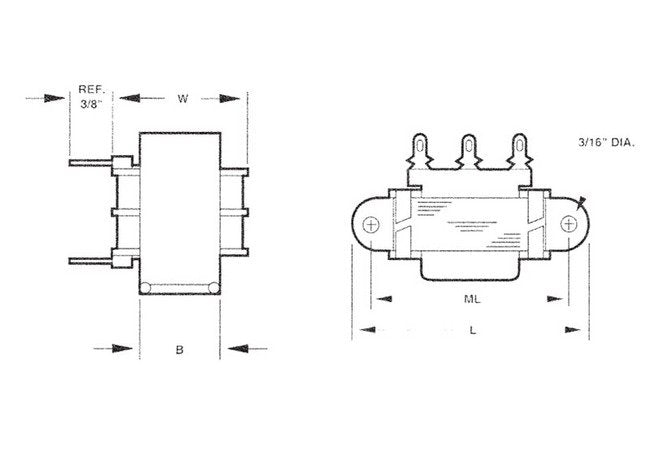

Specifications Dimension A
2 5/16 in
Specifications Dimension B
1 1/16 in
Specifications Electrical Rating
30.0 V·A
Specifications Height H
1 15/16 in
Specifications Length L
3 1/4 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
2 13/16 in

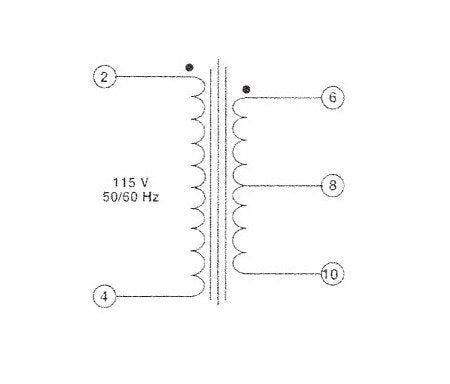

Specifications Output Rating
12.6 V CT at 2.5 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
1.10 lb
Specifications Width W
1 11/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
