Compact Power Transformers - Chassis Mount Quick Packâ¢
Compact Power Transformers - Chassis Mount Quick Packâ¢
SKU:POW-b29aaa
Get Triad Quick Pack⢠Chassis Mount Power Transformers for compact, efficient power solutions. Bobbin wound, space-saving design with reliable performance and compliance with industry standards.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Compact Power Transformers - Chassis Mount Quick Packâ¢
$29.99
Quantity: 1
Claim Your Seller Account
Compact Power Transformers - Chassis Mount Quick Packâ¢
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience the efficiency of Triad Quick Pack⢠Chassis Mount Power Transformers, delivering exceptional VA rating in a compact design. Designed for diverse applications, these transformers feature bobbin wound construction, eliminating the need for electrostatic shielding and offering easy termination options for quick connects or soldering. With Hi-pot testing up to 2,500 VRMS, Class B insulation, and compliance with industry standards, these transformers ensure reliable performance and space-saving solutions.
Product Specifications
Specifications Dimension A
1 15/16 in
Specifications Dimension B
13/16 in
Specifications Electrical Rating
12.0 V·A
Specifications Height H
1 5/8 in
Specifications Length L
2 13/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
2 3/8 in
Specifications Output Rating
48.0 V CT at 0.25 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Transformer Contact Type

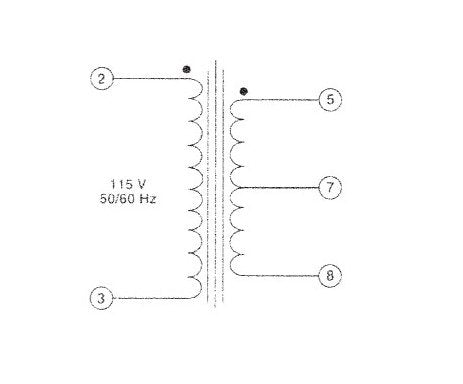

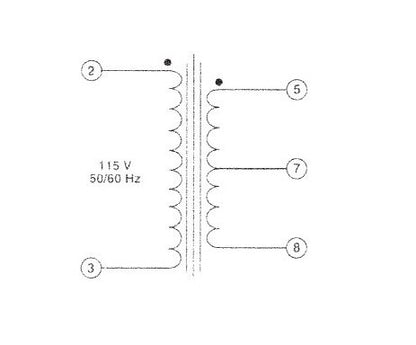

Center Tap
Specifications Type
Single Primary
Specifications Weight
0.70 lb
Specifications Width W
1 3/8 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
