The Chassis Mount Quick Pack⢠Power Transformers by Triad offer a streamlined design, reducing size and weight without compromising on performance. These transformers come in six sizes to cater to various applications, featuring bobbin wound construction for space efficiency and cost-effectiveness. The split bobbin nonconcentric winding eliminates the need for extra electrostatic shielding, making installation hassle-free. With a high-quality build and compatibility for quick connects or soldering, these transformers are ideal for demanding institutional and government requirements.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Dimension A
2 5/16 in
Specifications Dimension B
1 1/16 in
Specifications Electrical Rating
30.0 V·A
Specifications Height H
1 15/16 in
Specifications Length L
3 1/4 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
2 13/16 in
Specifications Output Rating
48.0 V CT at 0.63 A

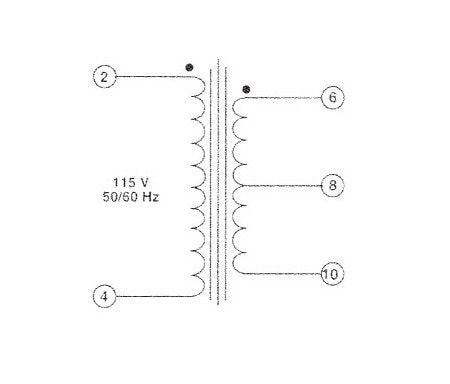

Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
1.10 lb
Specifications Width W
1 11/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
