Compact Power Transformers - Chassis Mount Quick Packâ¢
Compact Power Transformers - Chassis Mount Quick Packâ¢
SKU:POW-43e1d2
Enhance your power systems with compact Chassis Mount Quick Pack⢠Transformers for reliable and efficient performance.
Regular price
$64.99
Regular price
Sale price
$64.99
Unit price
per
Initiate Order
Compact Power Transformers - Chassis Mount Quick Packâ¢
$64.99
Quantity: 1
Claim Your Seller Account
Compact Power Transformers - Chassis Mount Quick Packâ¢
$64.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your power systems with the Chassis Mount Quick Pack⢠Power Transformers. These transformers offer a compact design without compromising on power output. With a bobbin wound construction and split bobbin nonconcentric winding, they reduce size and eliminate the need for costly electrostatic shielding. Suitable for a variety of applications, these transformers are hi-pot tested, ensuring safety and reliability. Say goodbye to bulky transformers and hello to efficient power solutions with the Chassis Mount Quick Packâ¢.
Product Specifications
Specifications Dimension A
2 11/16 in
Specifications Dimension B
1 1/16 in
Specifications Electrical Rating
56.0 V·A
Specifications Height H
2 1/4 in
Specifications Length L
3 11/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
3 1/8 in

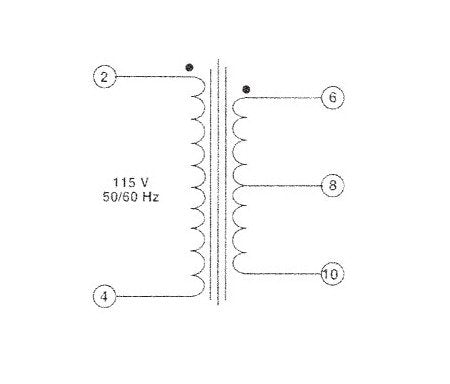

Specifications Output Rating
10.0 V CT at 5.0 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
1.70 lb
Specifications Width W
1 13/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
