Upgrade your power solutions with the Chassis Mount Quick Pack™ Power Transformers from the Triad Quick Pack series. These innovative transformers deliver a substantial decrease in size and weight while maintaining high performance. Boasting bobbin-wound construction for compactness, nonconcentric winding for cost-effectiveness, and versatile termination options for quick installation, these transformers are ideal for a wide range of applications. With electrical ratings of 56.0 VA, output rating of 48.0 V CT at 1.2 A, and Class B insulation for a maximum temperature of 130 ºC, these transformers ensure reliable power delivery in a space-saving design.
Product Specifications
Specifications Dimension A
2 11/16 in
Specifications Dimension B
1 1/16 in
Specifications Electrical Rating
56.0 V·A
Specifications Height H
2 1/4 in
Specifications Length L
3 11/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
3 1/8 in
Specifications Output Rating
48.0 V CT at 1.2 A
Specifications Primary Frequency
50 Hz | 60 Hz

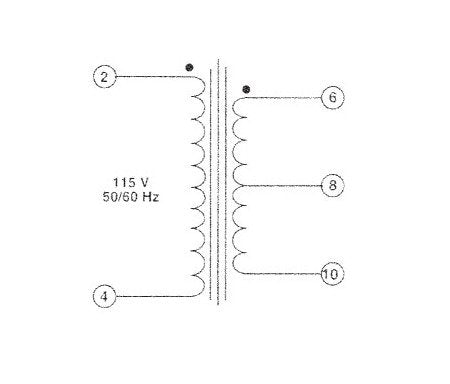

Specifications Primary Voltage
115 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
1.70 lb
Specifications Width W
1 13/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
