The Chassis Mount Quick Pack⢠Power Transformers from Triad offer a revolutionary design that significantly reduces size and weight without compromising on performance. Available in six sizes to suit various applications, these bobbin-wound transformers feature a split bobbin nonconcentric winding that eliminates the need for costly electrostatic shielding. With a compact design and easy termination suitable for quick connects or soldering, these transformers are ideal for space-constrained installations requiring reliable power distribution.
Product Specifications
Specifications Dimension A
1 5/8 in
Specifications Dimension B
9/16 in
Specifications Electrical Rating
2.4 V·A
Specifications Height H
1 3/16 in
Specifications Length L
2 1/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
1 3/4 in
Specifications Output Rating
20.0 V CT at 0.12 A
Specifications Primary Frequency
50 Hz | 60 Hz

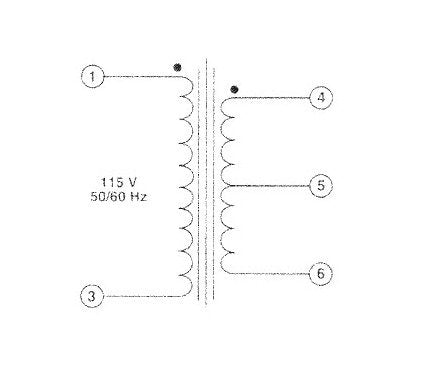

Specifications Primary Voltage
115 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
0.30 lb
Specifications Width W
1 3/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
