Compact Power Transformers - Chassis Mount Quick Pack⢠Series
Compact Power Transformers - Chassis Mount Quick Pack⢠Series
SKU:POW-01fa48
Enhance your power systems with Triad's Chassis Mount Quick Pack⢠Transformers - compact, efficient, and reliable.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Compact Power Transformers - Chassis Mount Quick Pack⢠Series
$59.99
Quantity: 1
Claim Your Seller Account
Compact Power Transformers - Chassis Mount Quick Pack⢠Series
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your power systems with the Chassis Mount Quick Pack⢠Power Transformers, designed by Triad for superior performance in a smaller and lighter form factor. With various size options, these transformers offer efficient bobbin wound construction, eliminating the need for costly electrostatic shielding. The split bobbin nonconcentric winding ensures reliability and safety. Ideal for quick connects or soldering, these transformers are hi-pot tested at 2,500 VRMS and come with Class B insulation, meeting industrial standards for durability and temperature resistance.
Product Specifications
Specifications Dimension A
1 5/8 in
Specifications Dimension B
9/16 in
Specifications Electrical Rating
2.4 V·A
Specifications Height H
1 3/16 in
Specifications Length L
2 1/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
1 3/4 in
Specifications Output Rating
10.0 V CT at 0.25 A
Specifications Primary Frequency
50 Hz | 60 Hz

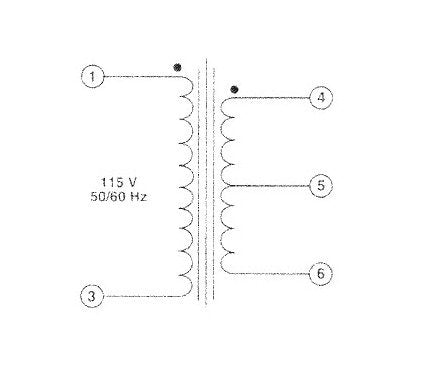

Specifications Primary Voltage
115 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
0.30 lb
Specifications Width W
1 3/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
