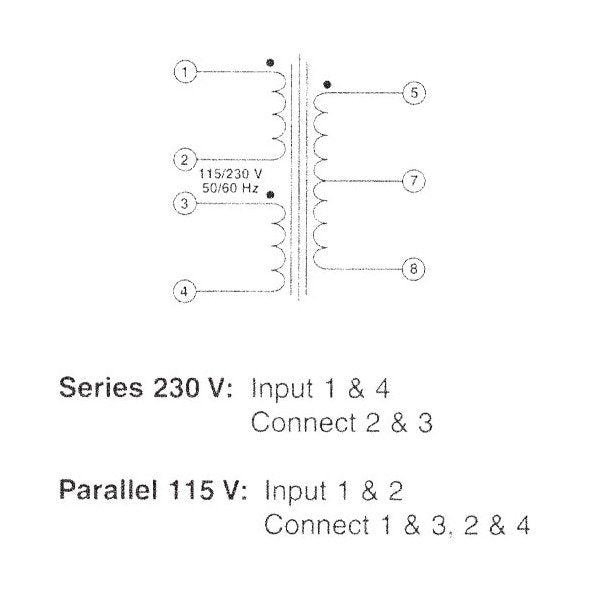

The Chassis Mount Quick Pack⢠Power Transformers from Triad offer a revolutionary reduction in size and weight without compromising power capability. Available in six sizes to suit various applications, these transformers feature bobbin winding for compactness and efficient space use. The split bobbin nonconcentric winding eliminates the need for expensive electrostatic shielding. With a dual primary type and high safety standards including hi-pot testing at 2,500 VRMS and Class B insulation for a maximum temperature of 130 °C, these transformers provide reliable performance. The termination design allows for quick connects or soldering, making installation a breeze.
Product Specifications
Specifications Dimension A
1 15/16 in
Specifications Dimension B
13/16 in
Specifications Electrical Rating
12.0 V·A
Specifications Height H
1 5/8 in
Specifications Length L
2 13/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
2 3/8 in
Specifications Output Rating
10.0 V CT at 1.2 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
0.70 lb
Specifications Width W
1 3/8 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
