Compact Power Transformers - Chassis Mount Quick Pack™ Series

Compact Power Transformers - Chassis Mount Quick Pack™ Series

POW-f21564

Get efficient power conversion with the compact Chassis Mount Quick Packâ„¢ Power Transformers from Triad. Ideal for various applications.

$59.99
$59.99
Sale

Initiate Order

Compact Power Transformers - Chassis Mount Quick Pack™ Series

Compact Power Transformers - Chassis Mount Quick Pack™ Series

$59.99

Quantity: 1

Claim Your Seller Account

Compact Power Transformers - Chassis Mount Quick Pack™ Series

Compact Power Transformers - Chassis Mount Quick Pack™ Series

$59.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

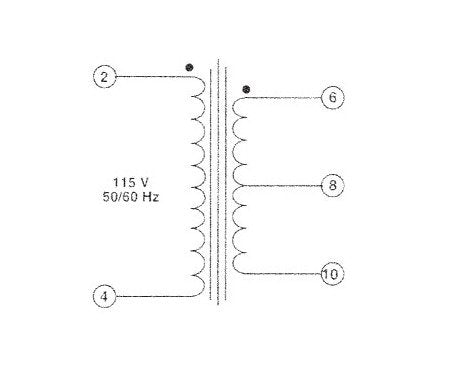

The Chassis Mount Quick Pack™ Power Transformers from the Triad Quick Pack series are designed to significantly reduce size and weight without compromising performance. With an electrical rating of 30.0 VA and an output rating of 24.0 V CT at 1.25 A, these transformers offer efficient power conversion for various applications. Featuring bobbin wound construction for compactness and split bobbin nonconcentric winding to eliminate the need for costly electrostatic shielding, these transformers are both space-saving and cost-effective. Tested at 2,500 VRMS and insulated with Class B materials, these transformers ensure safe and reliable operation up to 130 ºC. Suitable for quick connects or soldering, they provide ease of installation and use.

Product Specifications

Specifications Dimension A
2 5/16 in
Specifications Dimension B
1 1/16 in
Specifications Electrical Rating
30.0 V·A
Specifications Height H
1 15/16 in
Specifications Length L
3 1/4 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
2 13/16 in
Specifications Output Rating
24.0 V CT at 1.25 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
1.10 lb
Specifications Width W
1 11/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
