Compact Power Transformers - Chassis Mount Quick Pack⢠Series
Compact Power Transformers - Chassis Mount Quick Pack⢠Series
SKU:POW-5010e4
Experience unrivaled space-saving efficiency with the Chassis Mount Quick Pack⢠Power Transformers. Ideal for a wide range of applications, these transformers offer compact yet powerful performance.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Compact Power Transformers - Chassis Mount Quick Pack⢠Series
$49.99
Quantity: 1
Claim Your Seller Account
Compact Power Transformers - Chassis Mount Quick Pack⢠Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Chassis Mount Quick Pack⢠Power Transformers from the Triad Quick Pack series redefine compact power delivery. Designed for efficiency, these transformers offer a remarkable reduction in size and weight without compromising on performance. With bobbin-wound construction, split bobbin nonconcentric winding, and a Center Tap transformer contact type, these transformers ensure space-saving, reliable power solutions. Hi-pot tested at 2,500 VRMS and featuring Class B insulation, they meet stringent industry standards for safety and performance.
Product Specifications
Specifications Dimension A
1 15/16 in
Specifications Dimension B
13/16 in
Specifications Electrical Rating
12.0 V·A
Specifications Height H
1 5/8 in
Specifications Length L
2 13/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
2 3/8 in
Specifications Output Rating
24.0 V CT at 0.5 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V

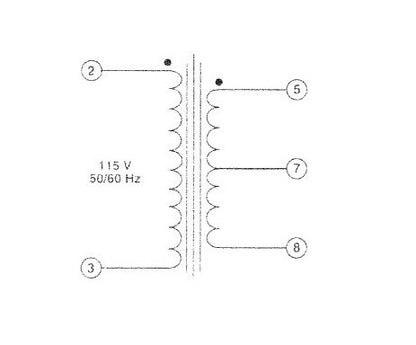

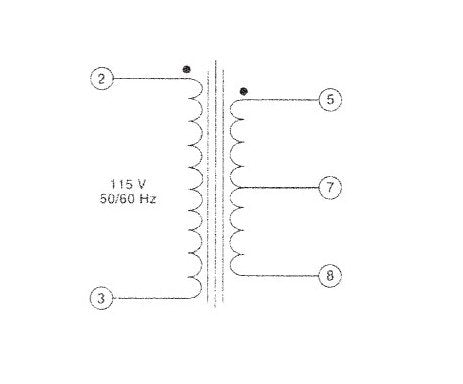

Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
0.70 lb
Specifications Width W
1 3/8 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
