Compact Power Transformers - Chassis Mount Quick Pack⢠Series
Compact Power Transformers - Chassis Mount Quick Pack⢠Series
SKU:POW-329763
Upgrade with Triad Quick Pack small power transformers - compact, efficient, and compliant with industry standards.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Compact Power Transformers - Chassis Mount Quick Pack⢠Series
$49.99
Quantity: 1
Claim Your Seller Account
Compact Power Transformers - Chassis Mount Quick Pack⢠Series
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your equipment with the Triad Quick Pack small power transformers, designed for maximum efficiency and space-saving. These transformers feature a compact design, ideal for various applications, and offer easy termination options for quick connections, saving you time and effort. With bobbin wound construction and nonconcentric winding, these transformers provide reliable performance without the need for costly electrostatic shielding. Tested for high voltage resistance and equipped with Class B insulation, these transformers ensure safety and durability, meeting the highest industry standards.
Product Specifications
Specifications Dimension A
1 15/16 in
Specifications Dimension B
13/16 in
Specifications Electrical Rating
12.0 V·A
Specifications Height H
1 5/8 in
Specifications Length L
2 13/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
2 3/8 in
Specifications Output Rating
28.0 V CT at 0.42 A
Specifications Primary Frequency
50 Hz | 60 Hz

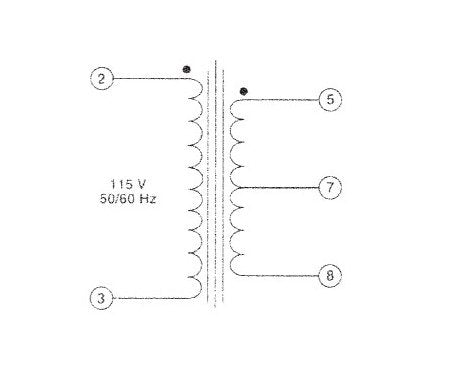

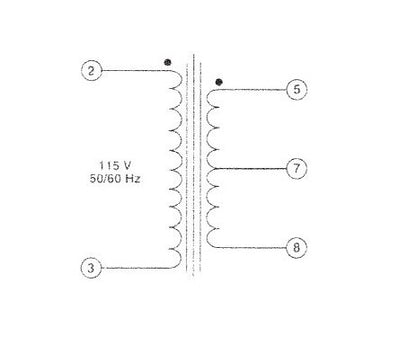

Specifications Primary Voltage
115 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
0.70 lb
Specifications Width W
1 3/8 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
