Compact Power Transformers - Chassis Mount Quick Packâ¢ Series

Name: Compact Power Transformers - Chassis Mount Quick Packâ¢ Series
Brand: Triad Magnetics
SKU: POW-b4da1c
Price: 49.99 USD
Availability: OutOfStock

SKU:POW-b4da1c

Compact Chassis Mount Quick Packâ¢ Power Transformers - Ideal for diverse applications, efficient and reliable.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Chassis Mount Quick Packâ¢ Power Transformers from Triad offer a compact, lightweight solution without compromising on performance. With a 100 VÂ·A electrical rating and a 16.0 V CT output at 6.25 A, these transformers are ideal for a wide range of applications. The bobbin wound design reduces size and operating space, while the split bobbin nonconcentric winding eliminates the need for costly electrostatic shielding. Tested at 2,500 VRMS, these transformers feature Class B insulation for a maximum temperature of 130 ÂºC, ensuring durability and safety. Suitable for quick connects or soldering, the termination options add to the convenience and versatility of these transformers.

Product Specifications

Specifications Dimension A

3 1/16 in

Specifications Dimension B

1 5/16 in

Specifications Electrical Rating

100 VÂ·A

Specifications Height H

2 9/16 in

Specifications Length L

4 1/32 in

Specifications Mounting Hole Size

3/16 in

Specifications Mounting Length

3 9/16 in

Specifications Output Rating

16.0 V CT at 6.25 A

Specifications Primary Frequency

50 Hz | 60 Hz

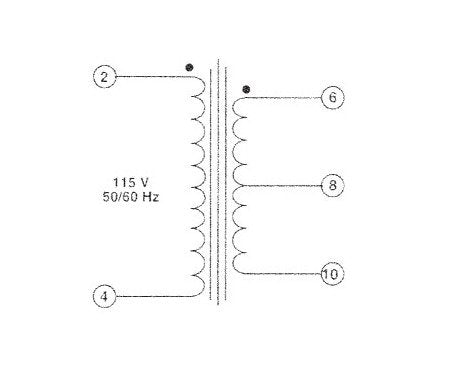

Specifications Primary Voltage

115 V

Specifications Transformer Contact Type

Center Tap

Specifications Type

Single Primary

Specifications Weight

2.80 lb

Specifications Width W

2 1/4 in

Technical Notes 0

Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ÂºC.Terminal size is 0.187" x 0.021".
