Compact Power Transformers - Dual Primary Voltage

Compact Power Transformers - Dual Primary Voltage

POW-36d0fa

Upgrade to compact Chassis Mount Quick Pack™ Power Transformers for efficient, space-saving power solutions.

$79.99
$79.99
Sale

Initiate Order

Compact Power Transformers - Dual Primary Voltage

Compact Power Transformers - Dual Primary Voltage

$79.99

Quantity: 1

Claim Your Seller Account

Compact Power Transformers - Dual Primary Voltage

Compact Power Transformers - Dual Primary Voltage

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Chassis Mount Quick Pack™ Power Transformers by Triad offer a revolutionary design that significantly reduces size and weight without compromising efficiency. With an electrical rating of 100 VA and an output rating of 48.0 V CT at 2.0 A, these transformers are optimized for diverse applications. Featuring bobbin wound construction for space reduction, split bobbin nonconcentric winding for cost-saving electrostatic shielding, and a center tap contact type for versatile connections, these transformers are engineered for high performance. Tested up to 2,500 VRMS for safety, these transformers feature Class B insulation and are suitable for both 50 Hz and 60 Hz frequencies. The compact dimensions make them ideal for space-constrained installations.

Product Specifications

Specifications Dimension A
3 1/16 in
Specifications Dimension B
1 5/16 in
Specifications Electrical Rating
100 V·A
Specifications Height H
2 9/16 in
Specifications Length L
4 1/32 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
3 9/16 in
Specifications Output Rating
48.0 V CT at 2.0 A
Specifications Primary Frequency
50 Hz | 60 Hz

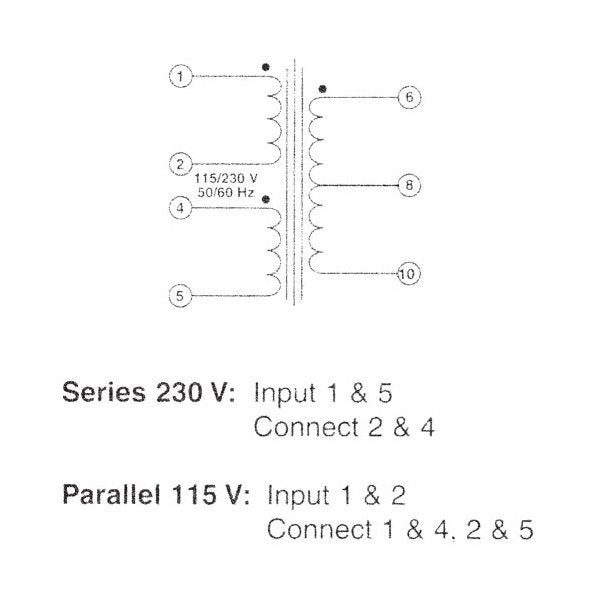

Specifications Primary Voltage
115 V | 230 V
Specifications Transformer Contact Type
Center Tap
Specifications Type
Dual Primary
Specifications Weight
2.80 lb
Specifications Width W
2 1/4 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
