The Chassis Mount Quick Pack⢠Power Transformers from the Triad Quick Pack series are designed to deliver optimal performance in a compact size, offering exceptional efficiency for diverse applications. These transformers come in six sizes, minimizing weight and space requirements. Featuring bobbin wound construction and a split bobbin nonconcentric winding design, they eliminate the need for costly electrostatic shielding. With a Center Tap transformer contact type and Class B insulation, these transformers ensure safe and reliable operation. Suitable for quick connect or soldering terminations, these transformers are a versatile and efficient choice for power applications.
Product Specifications
Specifications Dimension A
1 5/8 in
Specifications Dimension B
9/16 in
Specifications Electrical Rating
2.4 V·A
Specifications Height H
1 3/16 in
Specifications Length L
2 1/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
1 3/4 in
Specifications Output Rating
120.0 V CT at 0.02 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V

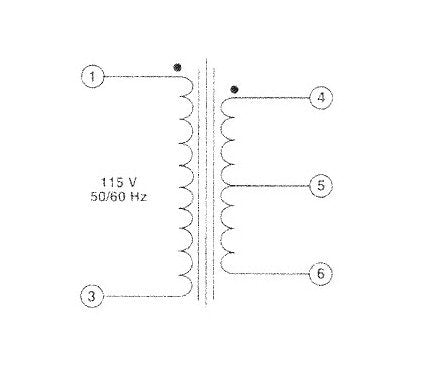

Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
0.30 lb
Specifications Width W
1 3/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
