Upgrade your power supply with the Triad Chassis Mount Quick Pack⢠Power Transformers. Designed for efficiency, these transformers deliver a compact and lightweight solution without compromising on performance. With bobbin wound construction and split bobbin nonconcentric winding, these transformers offer space-saving benefits and eliminate the need for costly electrostatic shielding. Ideal for various applications, they feature a Center Tap transformer contact type, ensuring reliable power distribution. Tested for performance and safety, these transformers adhere to Class B insulation standards and provide a steady 12.6 V CT at 1.0 A output rating.
Product Specifications
Specifications Dimension A
1 15/16 in
Specifications Dimension B
13/16 in
Specifications Electrical Rating
12.0 V·A
Specifications Height H
1 5/8 in
Specifications Length L
2 13/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
2 3/8 in
Specifications Output Rating
12.6 V CT at 1.0 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V

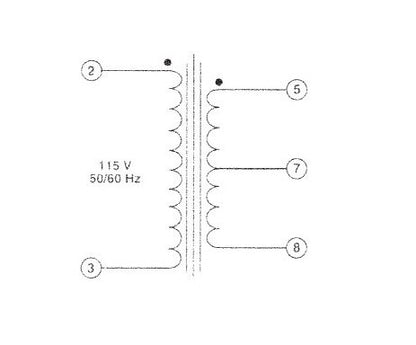

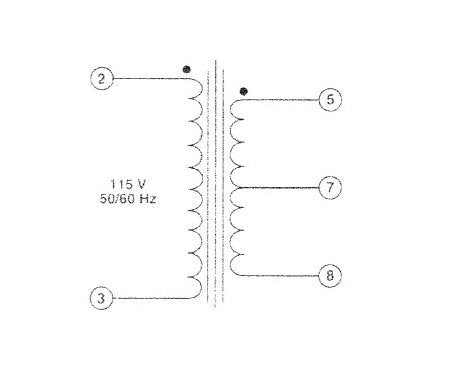

Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
0.70 lb
Specifications Width W
1 3/8 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
