Compact Power Transformers for Chassis Mounting
Compact Power Transformers for Chassis Mounting
SKU:POW-79486a
Enhance your power systems with efficient and compact Chassis Mount Quick Pack™ Power Transformers by Triad.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
Compact Power Transformers for Chassis Mounting
$69.99
Quantity: 1
Claim Your Seller Account
Compact Power Transformers for Chassis Mounting
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your power systems with the Triad Chassis Mount Quick Pack™ Power Transformers, designed for efficiency and space savings. With a compact size and reduced weight, these transformers offer exceptional performance for various applications. Featuring bobbin-wound construction and split bobbin nonconcentric winding, these transformers eliminate the need for costly electrostatic shielding. The dual primary design with center tap transformer contact type ensures easy termination for quick connects or soldering. Hi-pot tested at 2,500 VRMS, these transformers meet Class B insulation standards for temperatures up to 130°C, guaranteeing reliable and safe operation.
Product Specifications
Specifications Dimension A
2 11/16 in
Specifications Dimension B
1 1/16 in
Specifications Electrical Rating
56.0 V·A
Specifications Height H
2 1/4 in
Specifications Length L
3 11/16 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
3 1/8 in
Specifications Output Rating
28.0 V CT at 2.0 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V | 230 V
Specifications Transformer Contact Type
Center Tap
Specifications Type

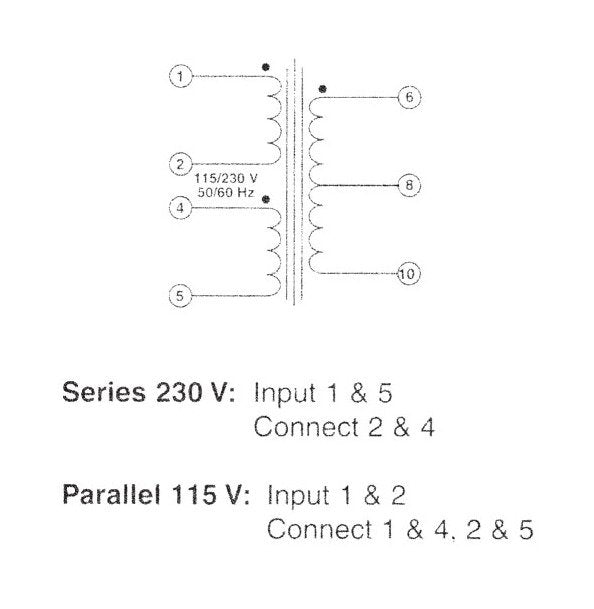

Dual Primary
Specifications Weight
1.70 lb
Specifications Width W
1 13/16 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
