The Chassis Mount Quick Pack™ Power Transformers from Triad offer a remarkable reduction in size and weight without compromising on performance. These transformers, available in six sizes, feature bobbin winding for compactness and reduced operating space. With split bobbin nonconcentric winding, costly electrostatic shielding is eliminated. Suitable for quick connects or soldering, these transformers are Hi-pot tested, feature Class B insulation, and meet various industry standards for reliable performance.
Product Specifications
Specifications Dimension A
1 11/16 in
Specifications Dimension B
11/16 in
Specifications Electrical Rating
6.0 V·A
Specifications Height H
1 3/8 in
Specifications Length L
2 3/8 in
Specifications Mounting Hole Size
3/16 in
Specifications Mounting Length
2 in
Specifications Output Rating
20.0 V CT at 0.3 A
Specifications Primary Frequency
50 Hz | 60 Hz
Specifications Primary Voltage
115 V

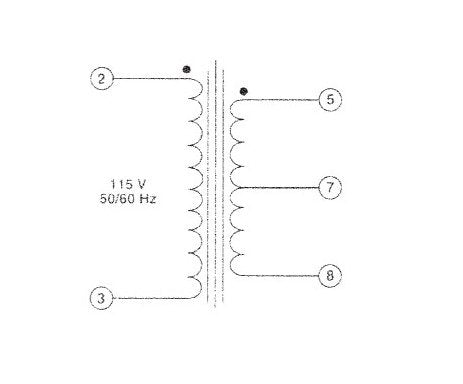

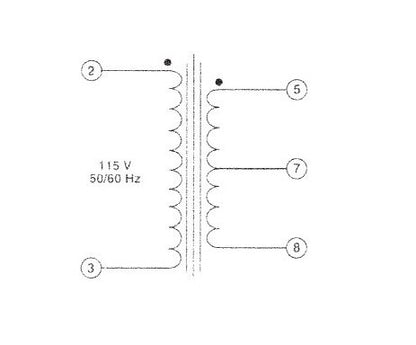

Specifications Transformer Contact Type
Center Tap
Specifications Type
Single Primary
Specifications Weight
0.40 lb
Specifications Width W
1 1/4 in
Technical Notes 0
Hi-pot tested at 2,500 VRMS.Class B insulation for maximum temperature of 130 ºC.Terminal size is 0.187" x 0.021".
